Model CR

Description

CB Part #: CB-8264B

• Electric vertical steam boiler with condensate return tank and pump assembly
• 12 to 563 KW – up to 1,969 lb/hr
• Up to 600V
• 15, 150, 200 & 250 psig
• No site emissions

Cleaver-Brooks electric boilers use electricity as an energy source for zero carbon footprint and zero site emissions, ideal for meeting emissions reduction or decarbonization goals. Electric boilers are also nearly 100% efficient, meaning all energy delivered to them is converted to steam or hot water.

Product Overview:

• Compact design and smaller footprint
• No site emissions
• Quiet operation with virtually no noise emissions
• Nearly 100% efficiency at all operating points
• Ease of maintenance with reduced complexity/number of moving parts
• All units are fully packaged and ready for installation

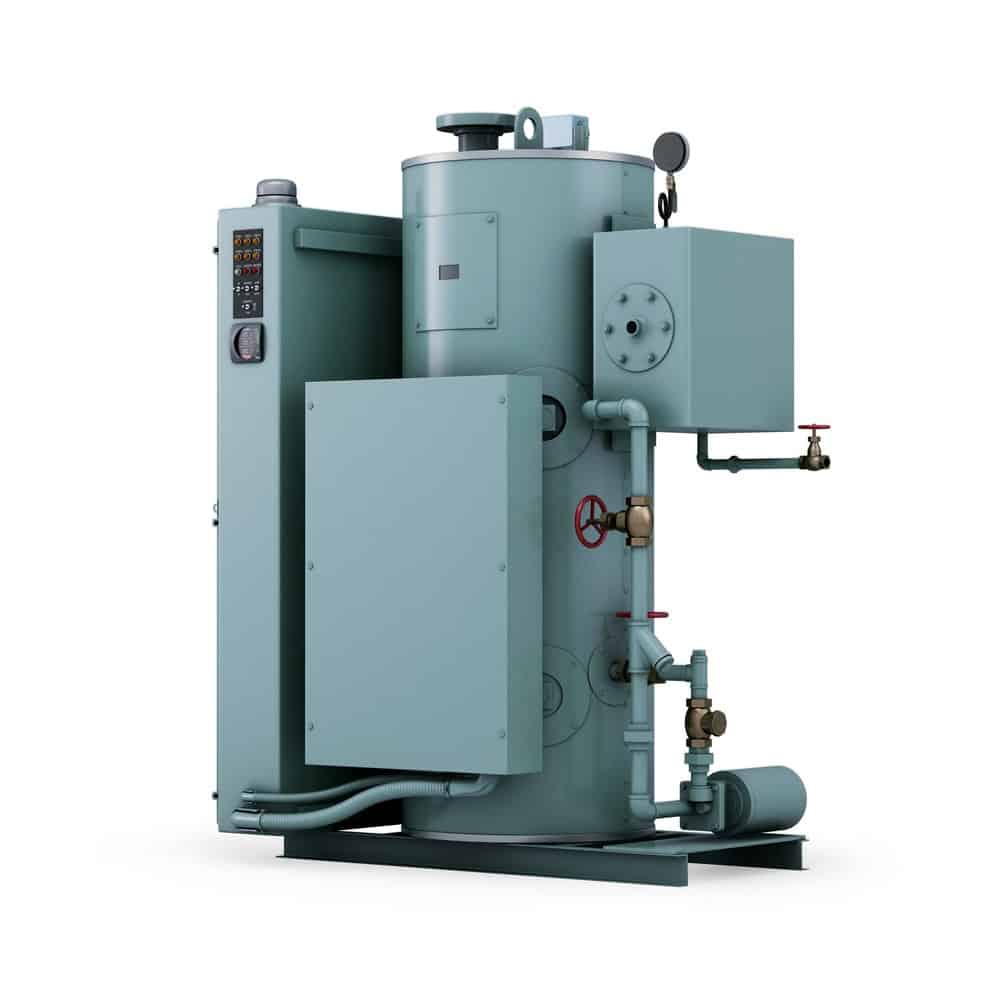

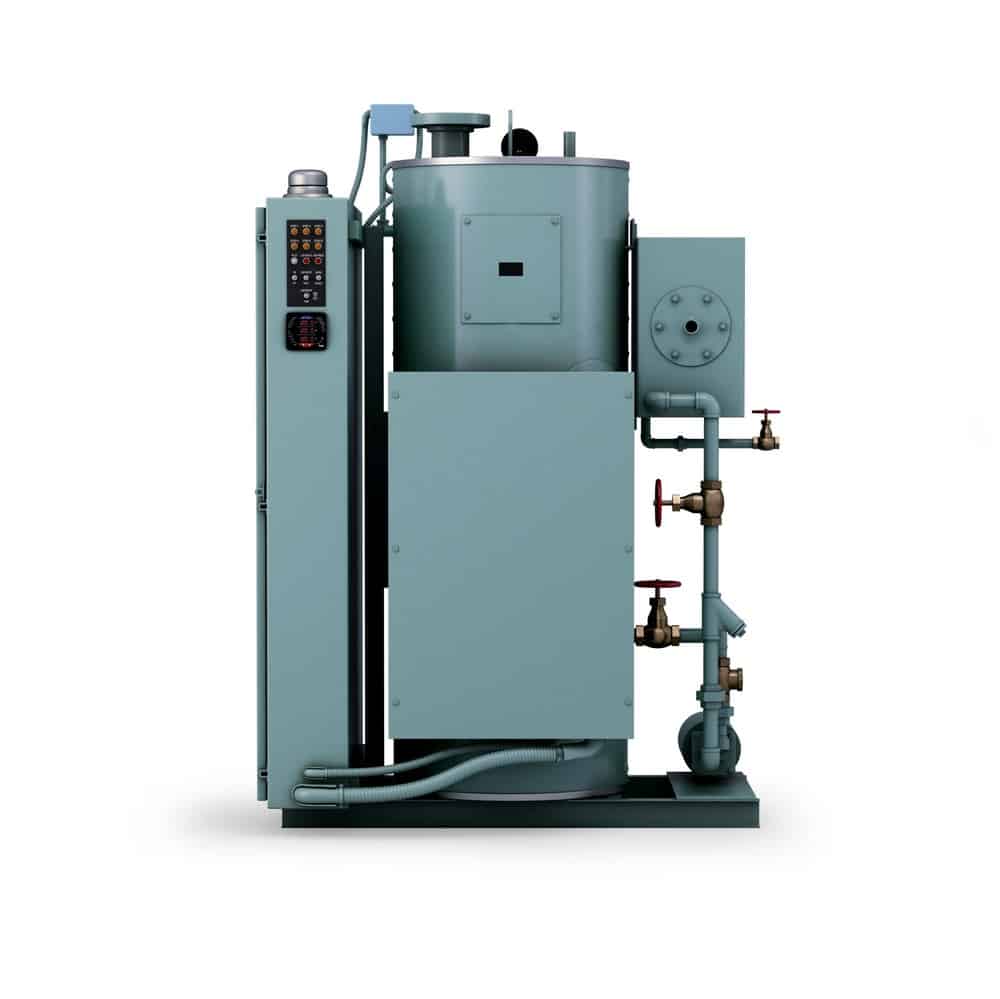

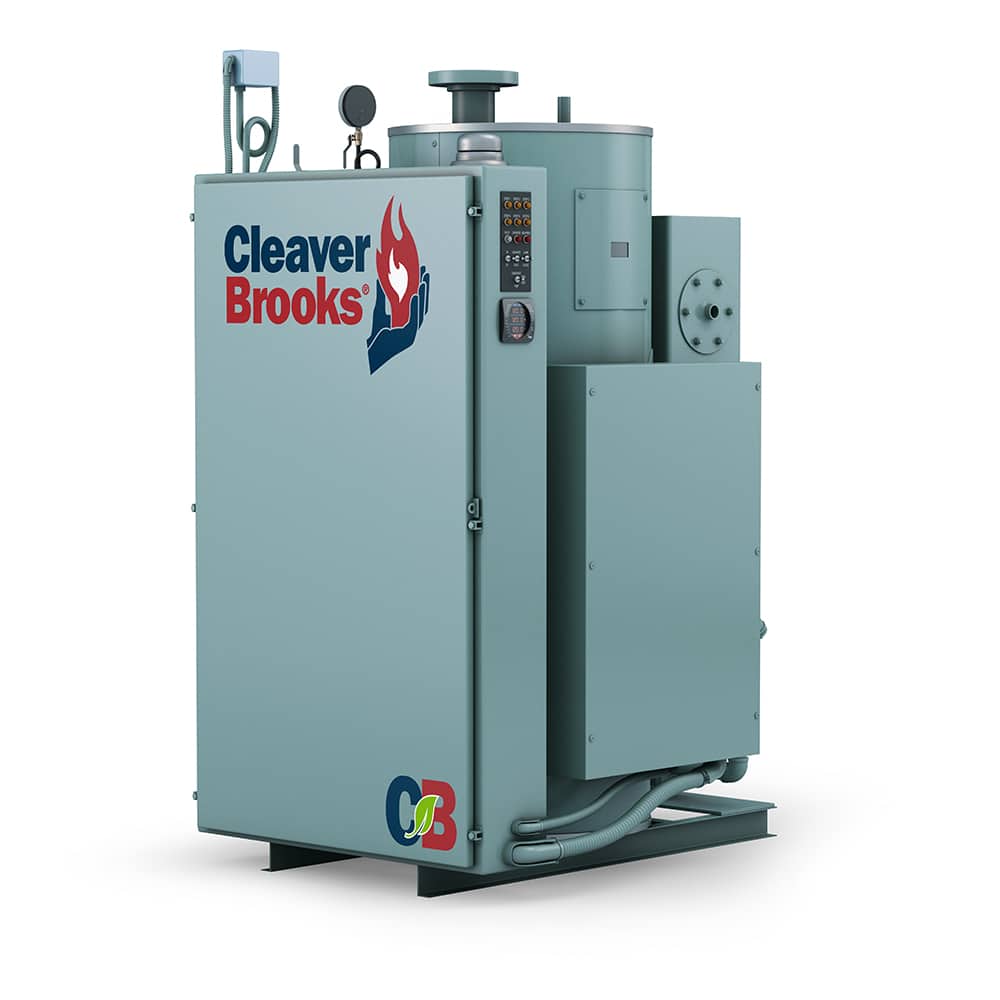

  The Cleaver-Brooks Model CR is an immersion-element steam boiler with a vertical, insulated vessel. This boiler is designed for the heavy-duty, continuous demand of commercial and industrial applications. Available in vessel sizes ranging from 12″ to 24″ diameter with an output spanning 12 kW to 563 kW. A typical Model CR boiler system includes operating controls, elements, fuses, contactors, safety valve, instrumentation, condensate-return tank, and feedwater pump.

Applications:

• Process Steam
• Building Heat
• Laundry and Dry Cleaning
• Decarbonization
