NCB Burner System

Description

CB Part #: CB-8494A

• For new boilers or retrofit applications/hr
• Natural Gas and light oil firing/hr
• Millions of configurations possible to satisfy your specific needs
• Available to < 30 ppm NOx, < 50 ppm CO
• 12 to 360 MMBTU/hr

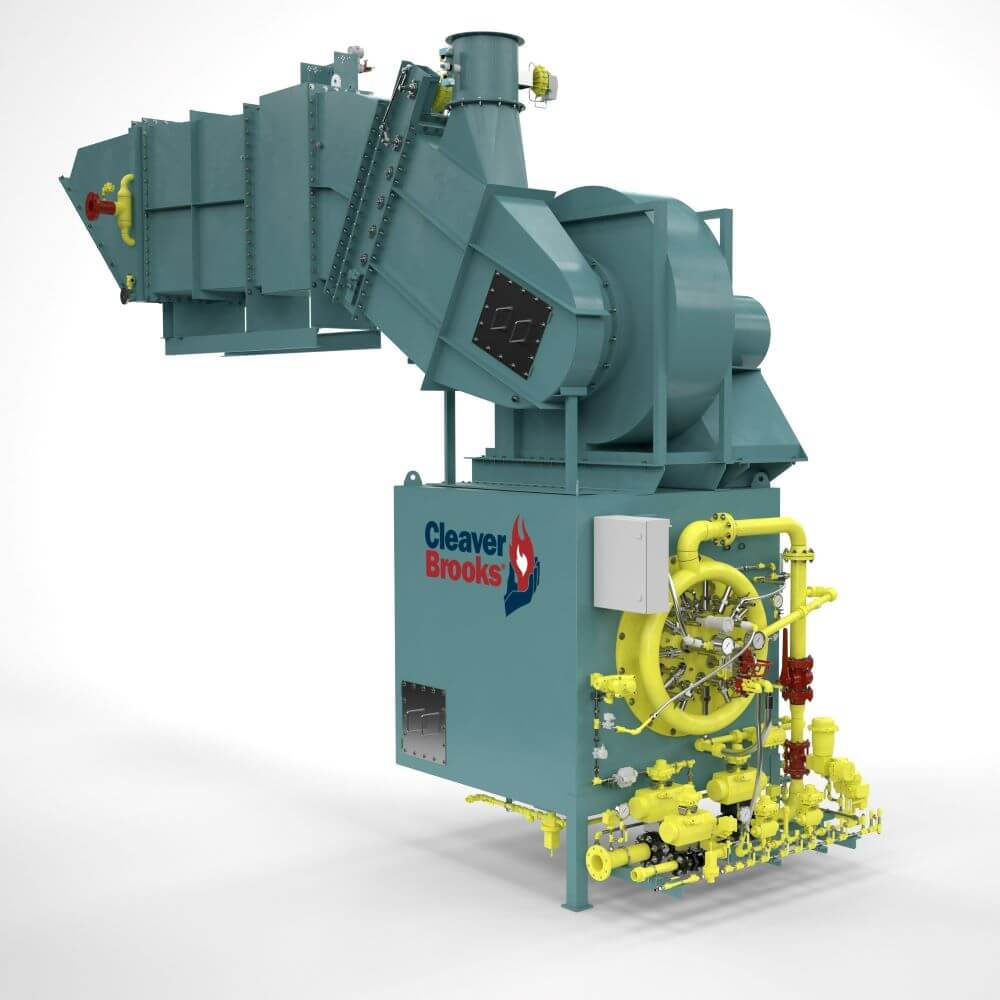

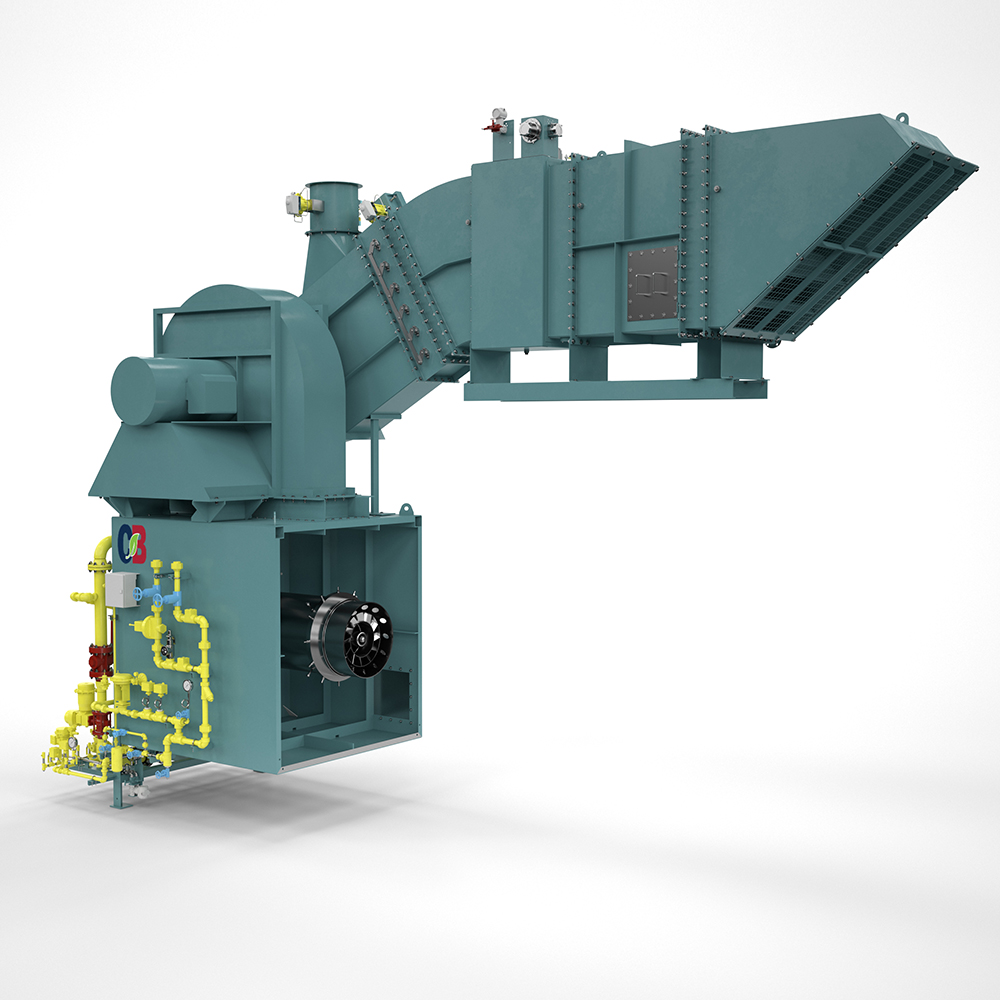

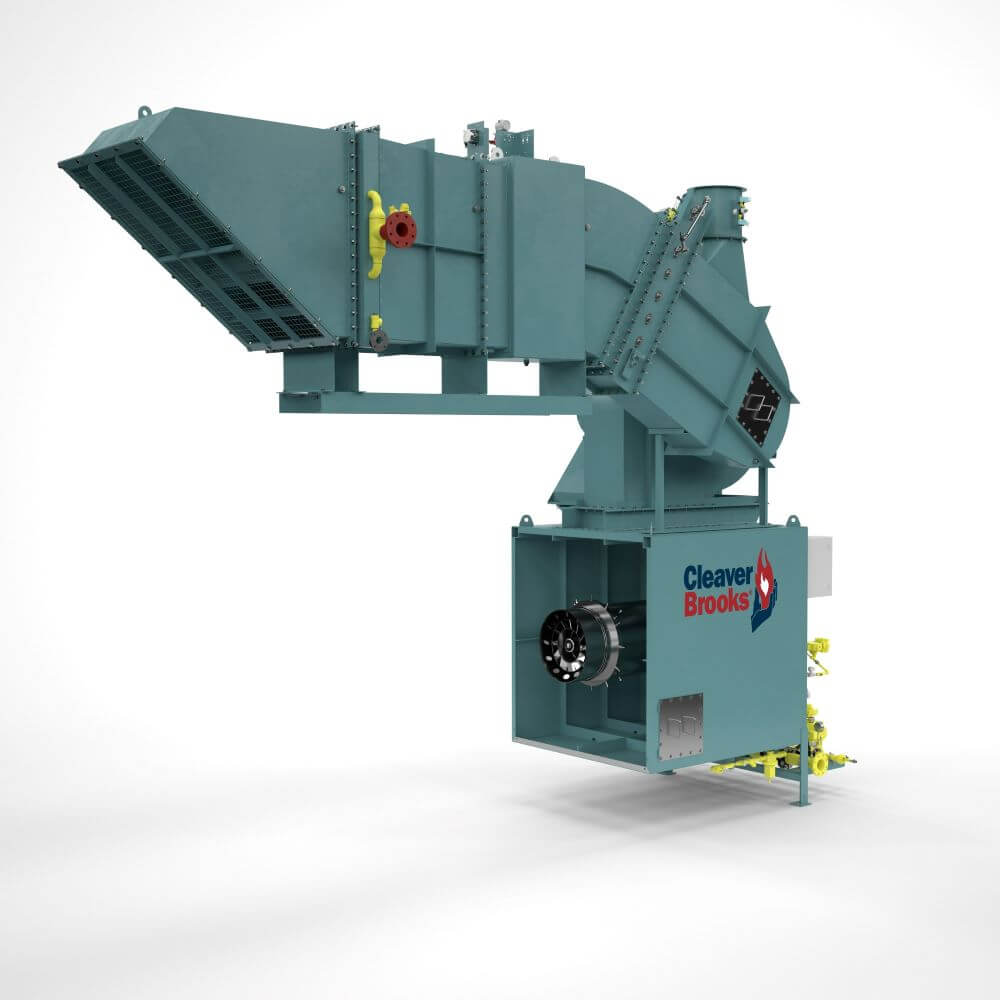

The NCB burner is a unique packaged burner system for new boilers and retrofit markets. These burners use advanced CFD modeling, and are equipped with advanced Natcom® design features, including externally adjustable gas injectors, Class-III igniters, atomizers with coupling block valves, which you can complement with your choice among a variety of industrial-grade controls, valves, switches, and gauges.

Natcom® burners feature emissions reductions of 50% compared to flaring and can achieve emissions goals of 9 ppm NOx. The high-efficiency burner design is engineered for multi-fuel firing, including renewables.

Product Overview:

• Large capacity, from 12 to 360 MMBTU/hr
• Stand-alone burner and windbox arrangements
• Air-handling equipment package
• Rack-mounted fuel trains
• Control system with fully metered CCS availableThe NCB product line features heavy-duty fan construction to reduce noise and prolong equipment life, a shipped loose or rack-mounted control panel, a custom control system in single-point, parallel, or fully metered configuration, a precise, rugged CAMLINK™ system for single-point positioning, high turndown, excess O2 control, easy access, windbox-mounted fuel trains built per ASME B31.3 and NFPA 85, and compact air-handling arrangement with integrated air flow element and silencer. In addition, the NCB product line meets all NFPA and CSA guidelines and standards.

Applications:

• Process Steam
• Industrial Process
• Building Heat
• Sterilization
• Humidification
• Waste Heat Recovery
• Chemical
• Power and Utilities
• Refineries and Petrochemical
• Hospital and Healthcare
