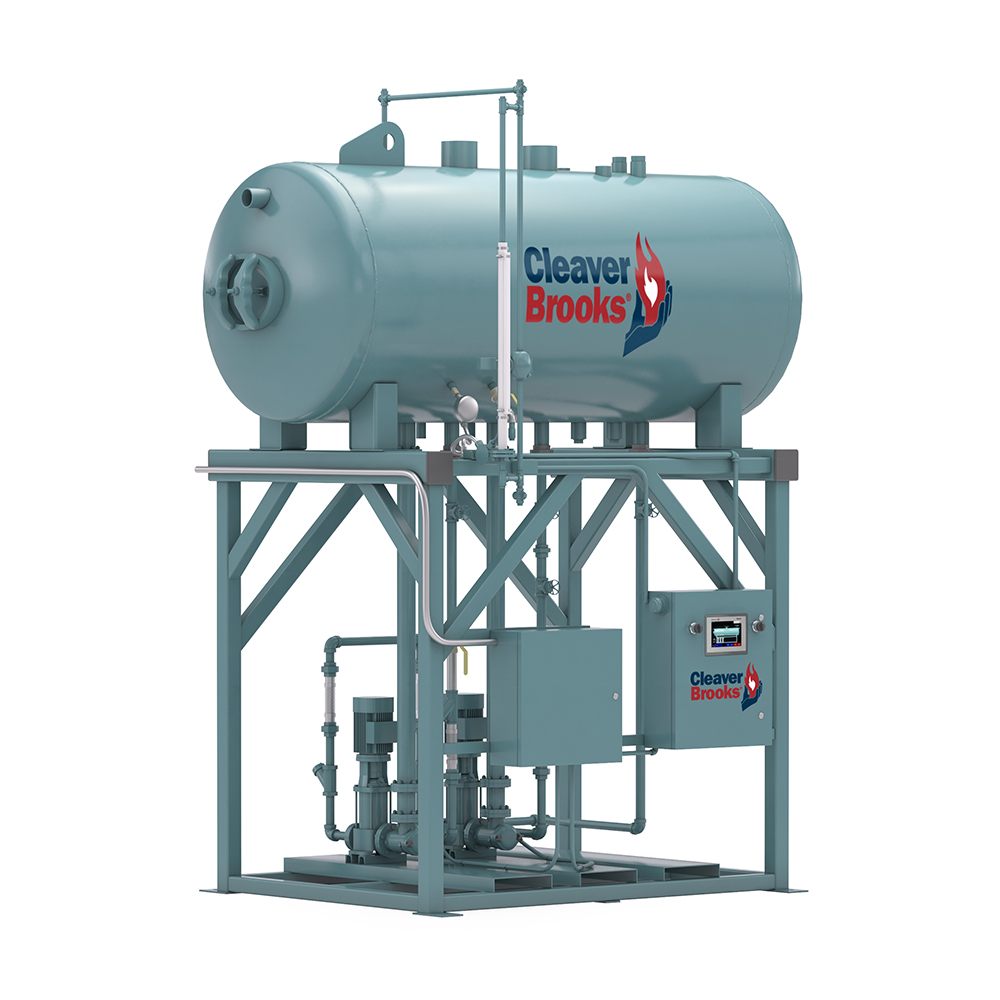

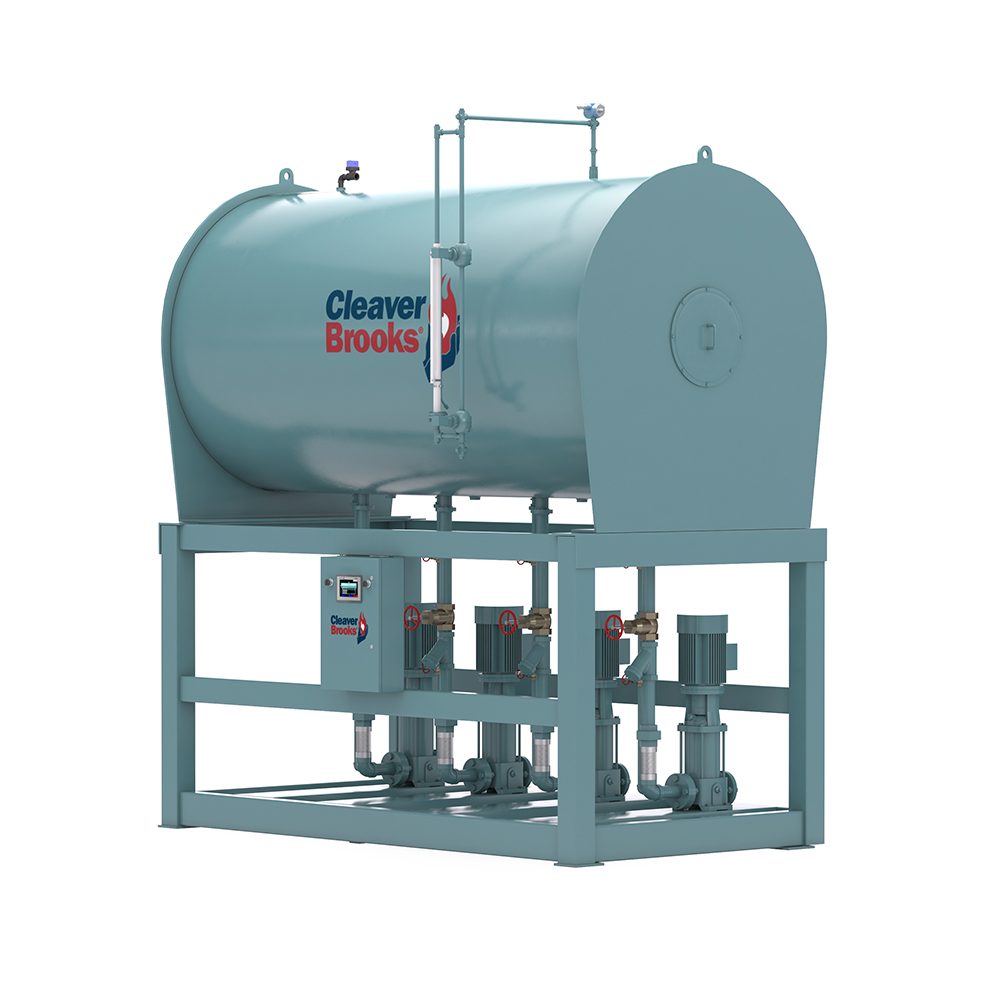

SRG Surge Tank

Description

CB Part #: CB-8489E

• Condensate surge tank
• 300-3,600 gallon capacity
• On/off or variable speed pumping

  The Cleaver-Brooks surge tank products provide additional storage time to handle water volume swings in condensate return to eliminate potential for overflow from a stand-alone deaerator system.

Product Overview:

• ASME code design
• 1/4″ thick (minimum) shell
• Boosts condensate return pressure
• Accepts gravity condensate returns

  Because condensate return volume is largely unpredictable, a surge tank provides a means to collect intermittent condensate returns and supply water at a relatively constant volume, while limiting discharge to drain.
  The surge tank will collect both pumped and gravity condensate returns and will boost pressure for delivery to the deaerator. The Cleaver-Brooks surge tank is a full ASME design, providing longevity to the system.
  A variety of control solutions are available ranging from mechanical control to full digital control packages.
  Cleaver-Brooks also offers the model CST, a non-ASME surge tank for smaller applications or applications not requiring ASME construction.

Applications:

• Process Steam
• Industrial Process
• Building Heat
• Sterilization
• Humidification
• Waste Heat Recovery
• Hospital and Healthcare
• Power and Utilities
• Refineries and Petrochemical
• Laundry and Dry Cleaning
