M5

Description

CB Part #: CB-8431

• Steam or Hot Water
• 1,500-8,000 MBH Input
• Natural gas, #2 Light Oil, Propane
• 15-500 psig Design Pressure

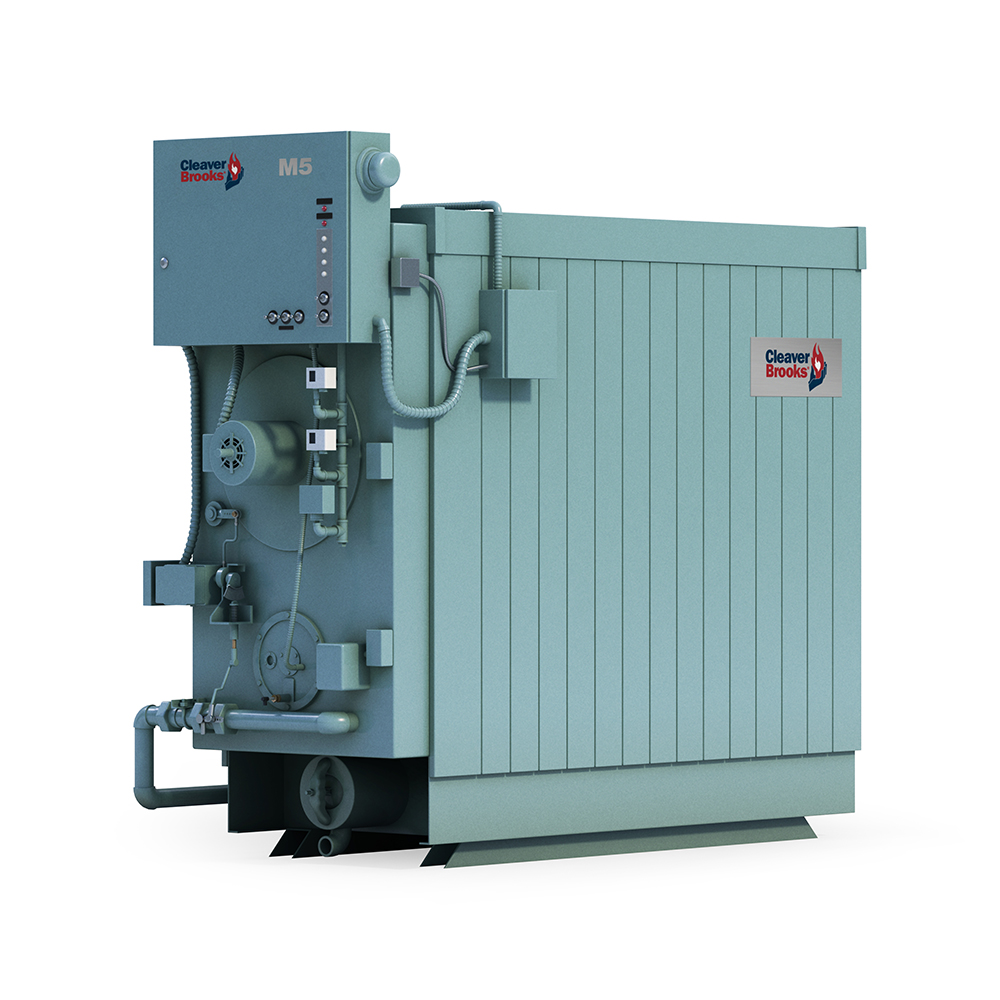

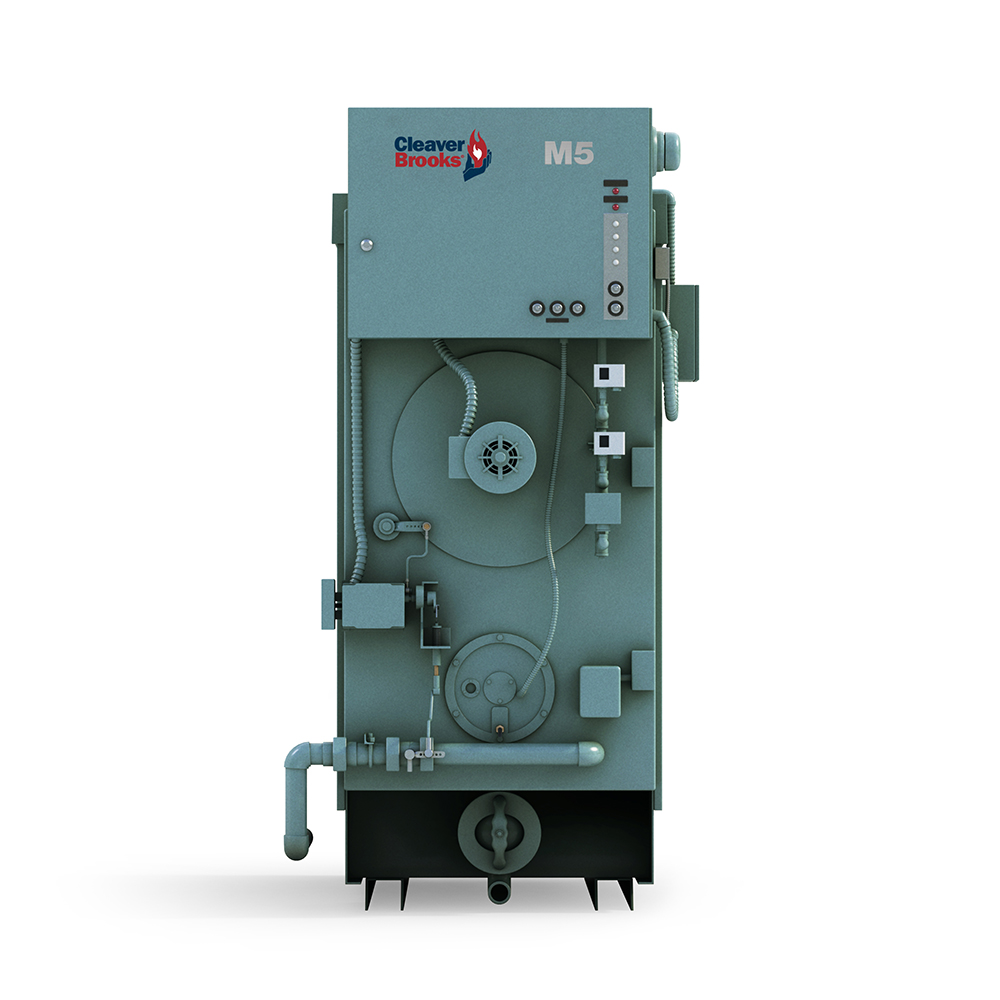

  The Model 5 membrane wall watertube boiler is a high-performance, super-compact unit designed specifically to fit through a doorway.

Product Overview:

• Integral burner for maximum efficiency
• Ease of installation
• Quiet: <70 dBA sound level
• Low water volume designs

  The integral burner design is proven CB technology that is robust and can be setup for dual fuel applications. The hinged wind box allows easy access for service and maintenance. The Model 5 is a compact unit that reduces floor space by 50% with weight savings of 40% while providing steam or hot water for commercial or industrial applications. The complete package fits through a standard doorway, ideal for replacement of existing units with ease of installation and minimal cost. The Soot washer lances in the upper convection area of the boiler allow ease of maintenance when firing on #2 oil. Each lance is capable of rotating 360 degrees to ensure complete washing of the convection zone.

Applications:

• Process Steam
• Industrial Process
• Building Heat
• Sterilization
• Healthcare
