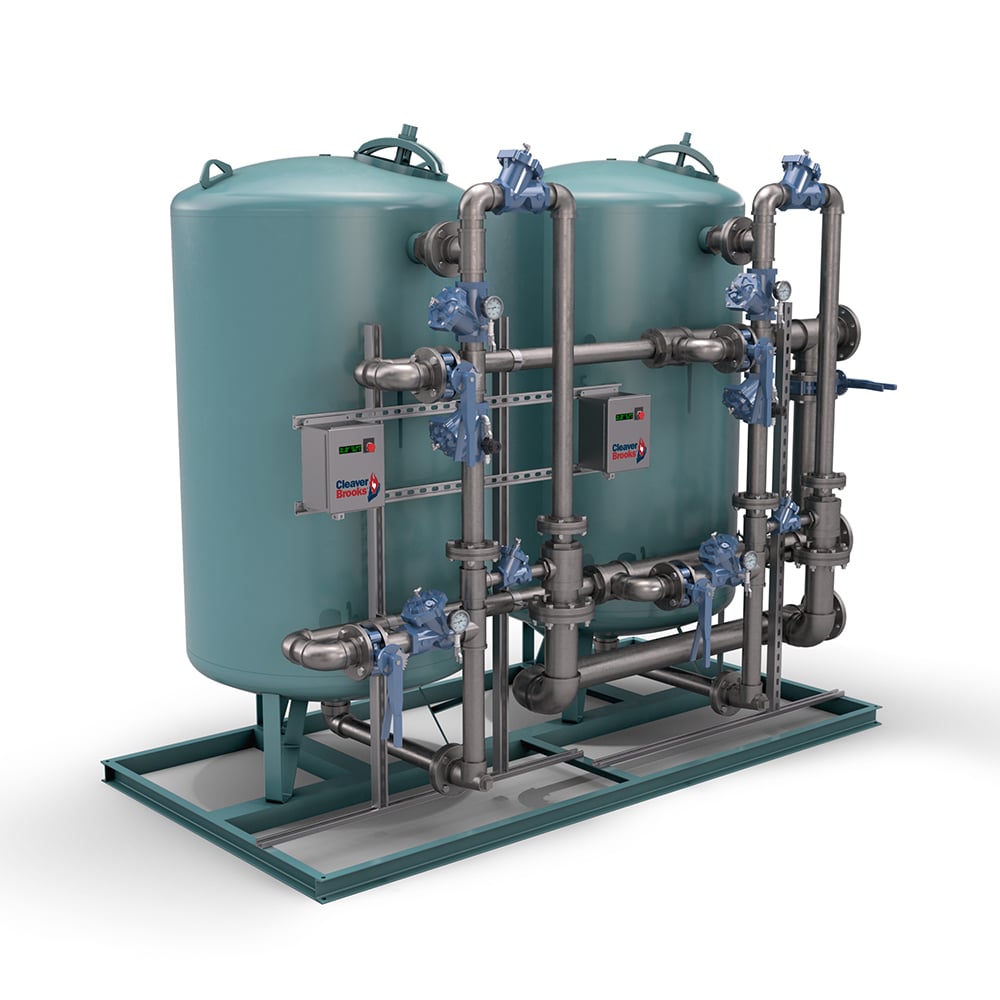

Filtration Systems

Description

CB Part #: CB-8490D

• Steam and Hot Water Applications
• Sized from 50,000 to 1,000,000 grains capacity
• Flow rates from 2 to 800 gpm
• Tank sizes range from 10″ to 120″ diameter
• Tanks of FRP plastic or steel
• Filter systems available to fit any boiler applicationFiltration systems remove particulate and dissolved impurities from the make-up water. Cleaver-Brooks Series FBF and FBS water filters can treat for sediment removal, iron, manganese, hydrogen sulfide removal, acid neutralization, and chlorine removal.

Product Overview:

Raw water analysis can easily determine the need for special filter equipment for removal of impurities. The cost of these systems is quickly recovered by eliminating the need for frequent equipment cleaning and servicing, inefficient performance, damage to system components and premature equipment failure. Both models FBF and FBS are automatic backwashing media filter systems with control timers and valves. The FBF series are FRP resin tanks certified to NSF 44. FBS water filters feature carbon steel media tanks with NSF 61 epoxy tank lining. Combination of tanks, exterior piping and skid mounting options available.

Applications:

• Process Steam
• Industrial Process
• Building Heat
• Sterilization
• Humidification
• Waste Heat Recovery
• Hospital and Healthcare
• Power and Utilities
• Laundry and Dry Cleaning
• Refineries and Petrochemical
