Forced Circulation OSSG

Description

CB Part #: CB-8500F

• Saturated steam
• 200,000 to 500,000 lb/hr
• Natural Gas, #2 – #6 oil, refinery fuels, alternative fuels
• Design pressure up to 2,300 psig
• Available to less than 5 ppm NOx, Ultra-Low CO

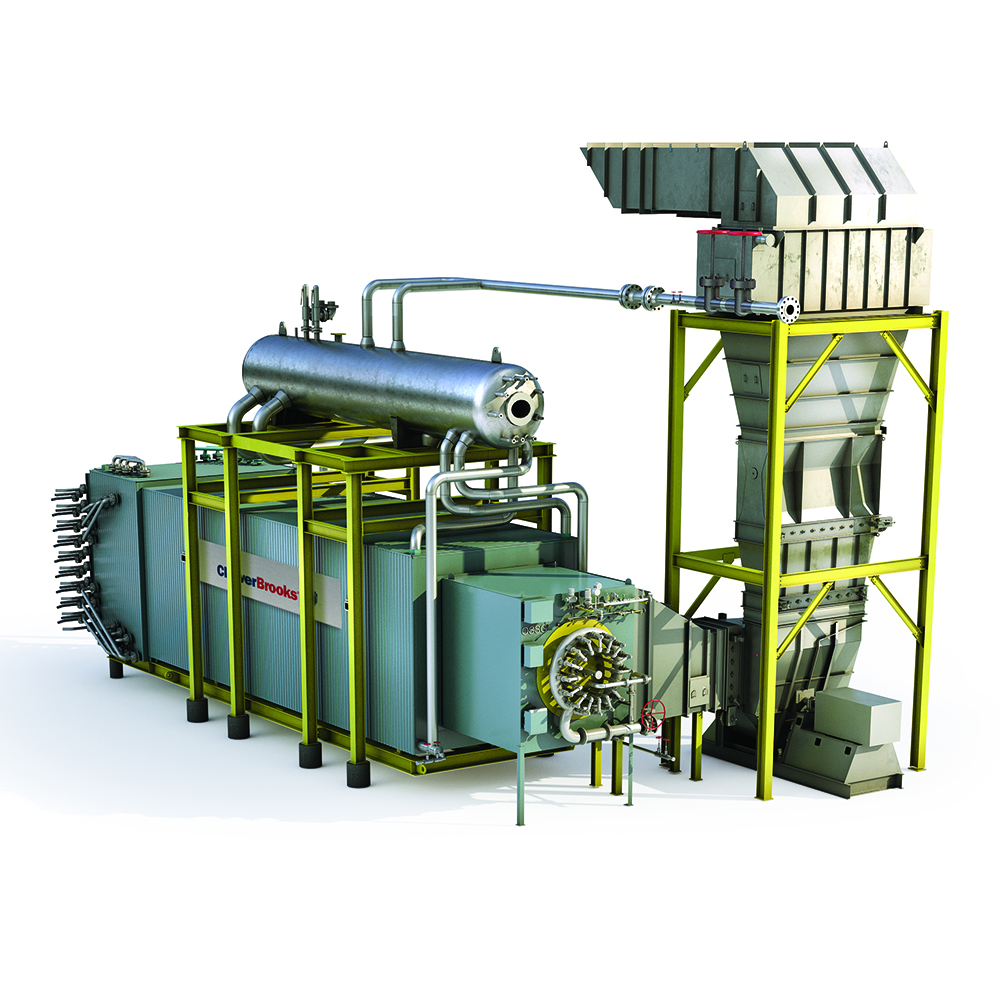

The Cleaver-Brooks Forced-Circulation Oil Sands Steam Generator (FC-OSSG) combines the benefits of a traditional D-style watertube boiler, with high steam purity and very low blowdown, and the ease of cleaning of once-through steam generators (OTSG).

Product Overview:

• Highly efficient steam solutions capable of meeting strict emissions requirements
• Increased efficiency with minimal blowdown.
• 10:1 turndown.
• Single-source integrated boiler/burner/control package engineered to work together.
• Smaller footprint for reduced material cost and space savings.
• Shipped modular for ease of installation.
• 100% mechanically cleanable by pigging.

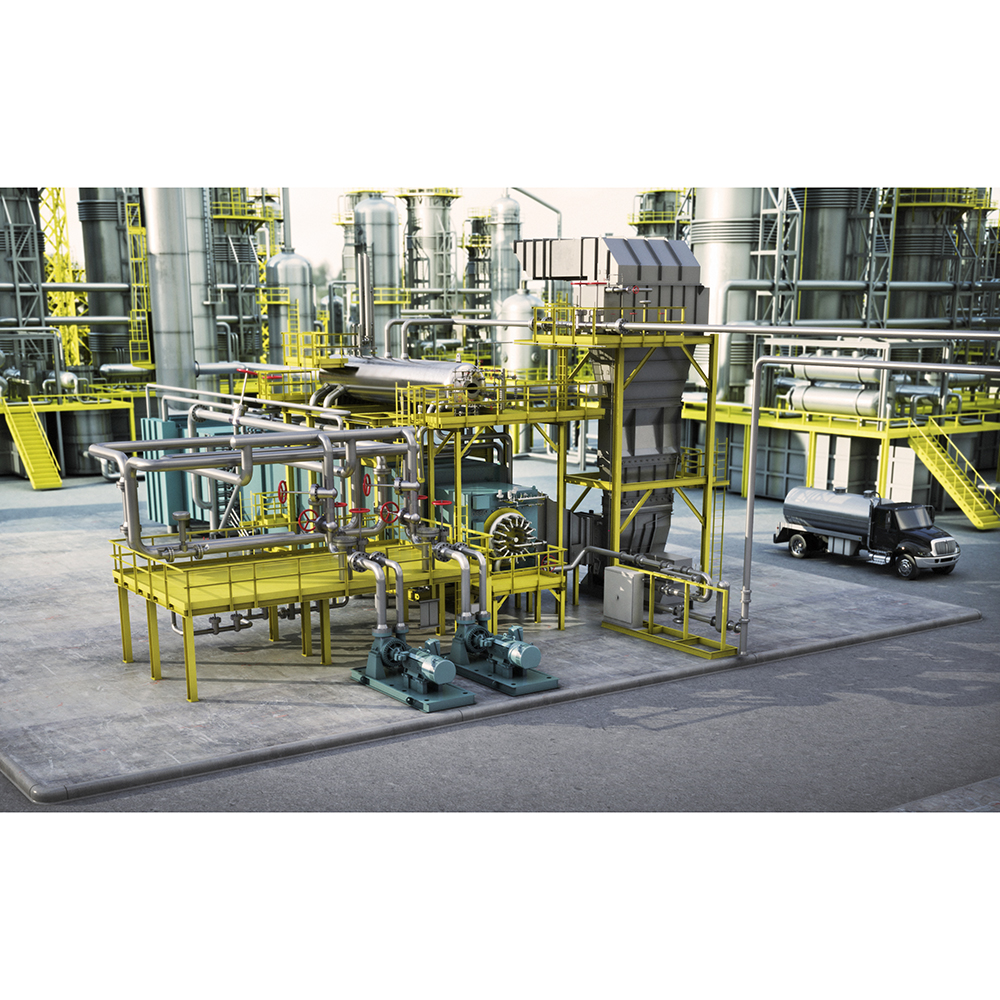

This large-capacity steam generator is uniquely suited for the needs of the oil sands market and is ideal for use in SAGD applications utilizing produced water.

Applications:

• Oil Sands & Petroleum
