Waste Heat Boilers

Description

CB Part #: CB-8488A

Steam
10,000 to 500,000 lb/hr
Temperatures to 900°F
Steam pressures up to 2,300 psig
Gas flow rates up to 1,000,000 lb/hr
A, O, and D-type designs

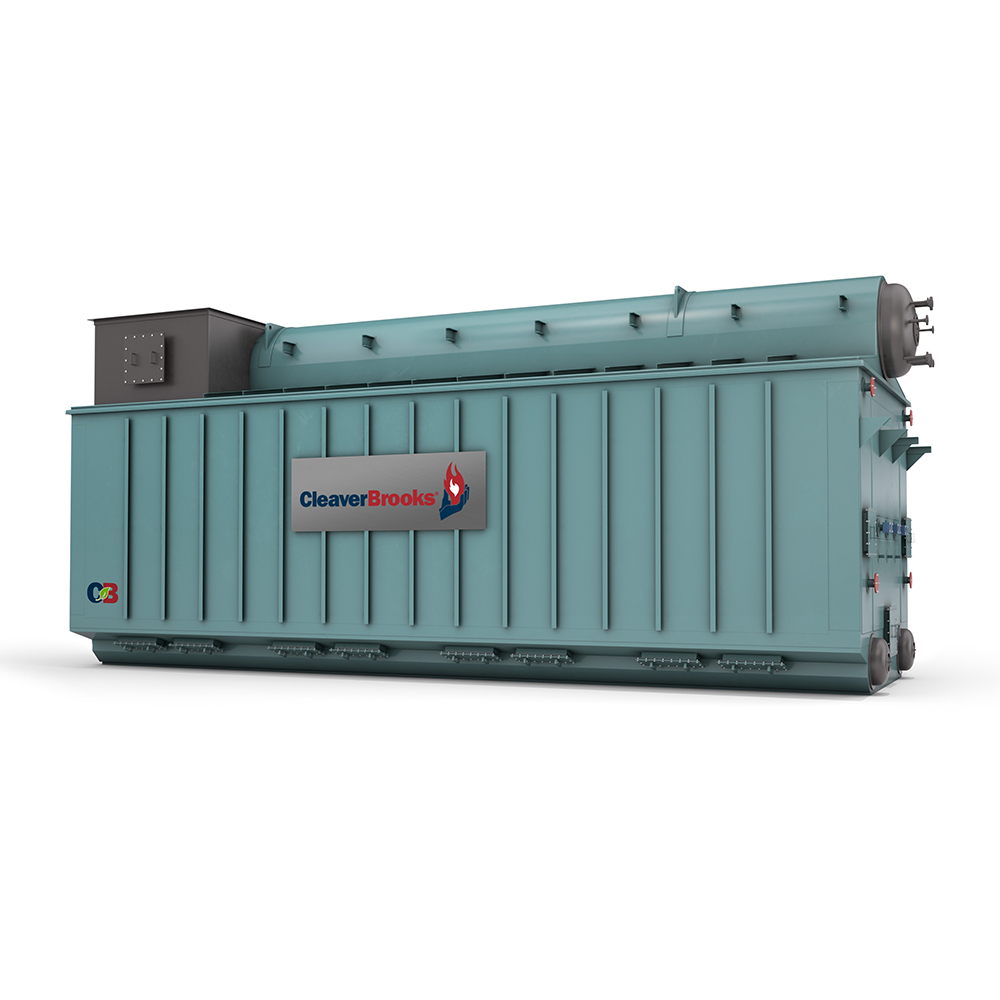

The Cleaver-Brooks waste heat watertube boilers are offered in a single pass design or multiple pass design including furnace / radiant sections.
Reusing waste heat for steam or power replaces the need for additional auxiliary-fired boilers. Every 1 MMBtu/hr recovered eliminates 410 tons of CO2 and 280 lbs each of NOx and CO annually to help meet energy efficiency, emissions reduction and decarbonization goals.

Product Overview:

Multiple casing design options (internally lined and insulated, refractory construction or membrane wall construction).
Vertical (top) or horizontal gas outlet conforms to space restrictions
Combination of bare and finned tubes depending on flue gas recovery
Full-length steam and hot water drums with manways on each end for easy access
With our many years of custom energy recovery from combustors, industrial processes, and gasification processes, Cleaver-Brooks provides natural circulation designs with membrane wall construction. Our single pass designs have the steam and water drums position parallel or perpendicular to the gas flow. These designs can incorporate an internal or external superheater, sootblowers, and economizers. Our multiple pass designs include a radiant / furnace section to temper the heat of the flue gases before entering the screen or main evaporator bank. These designs are available in A-type, D-type, or O-type configurations.

Applications:
