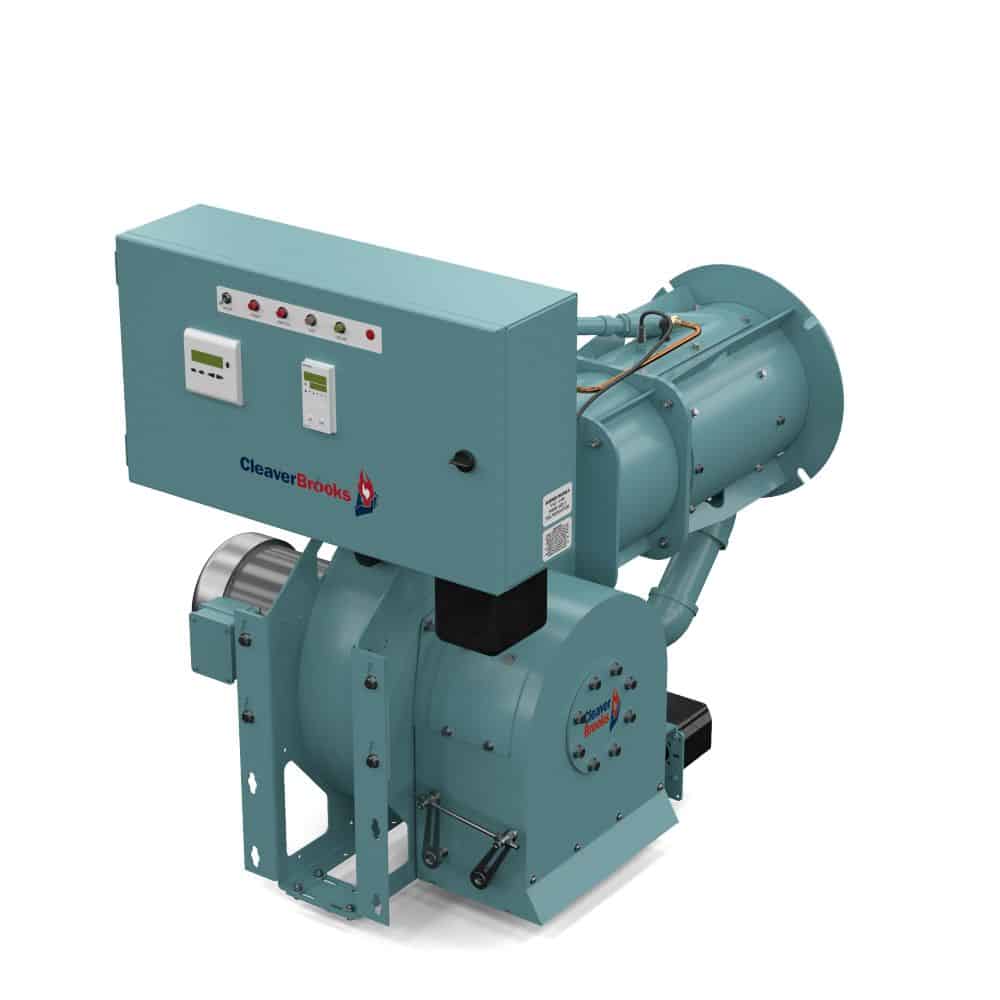

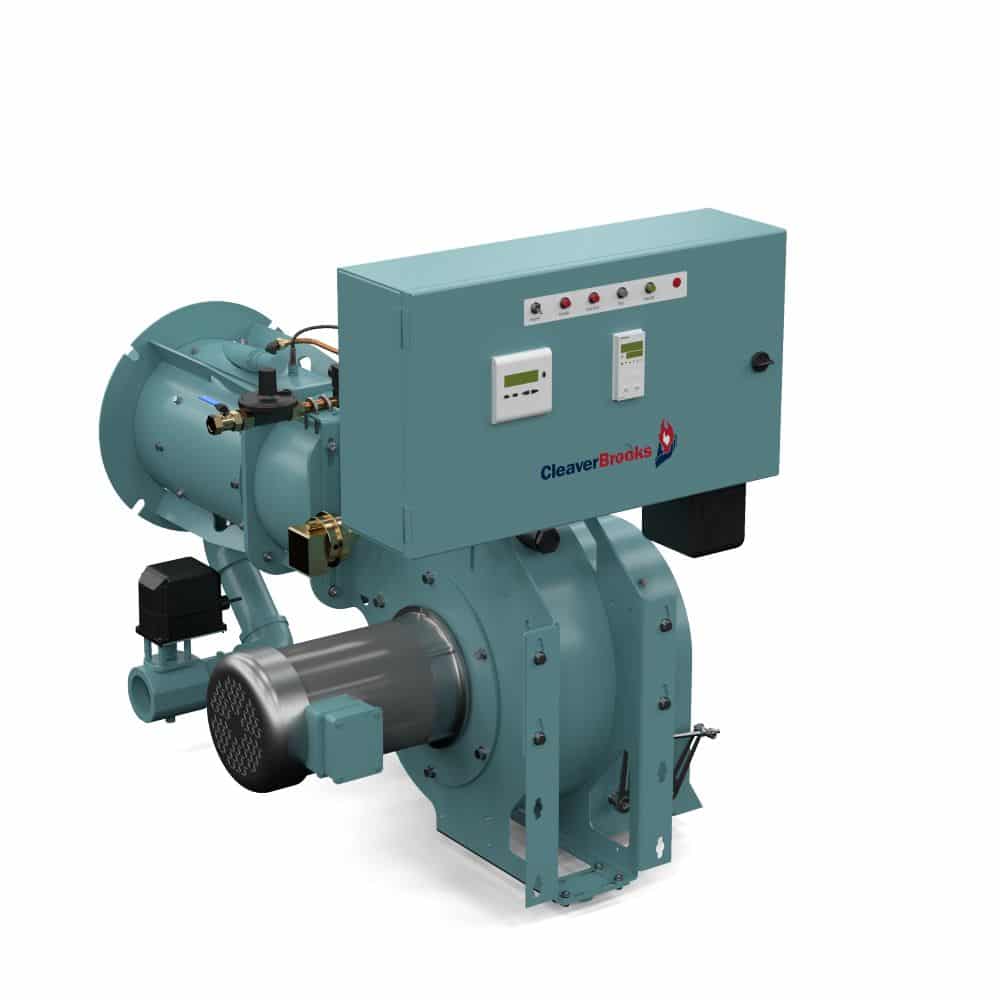

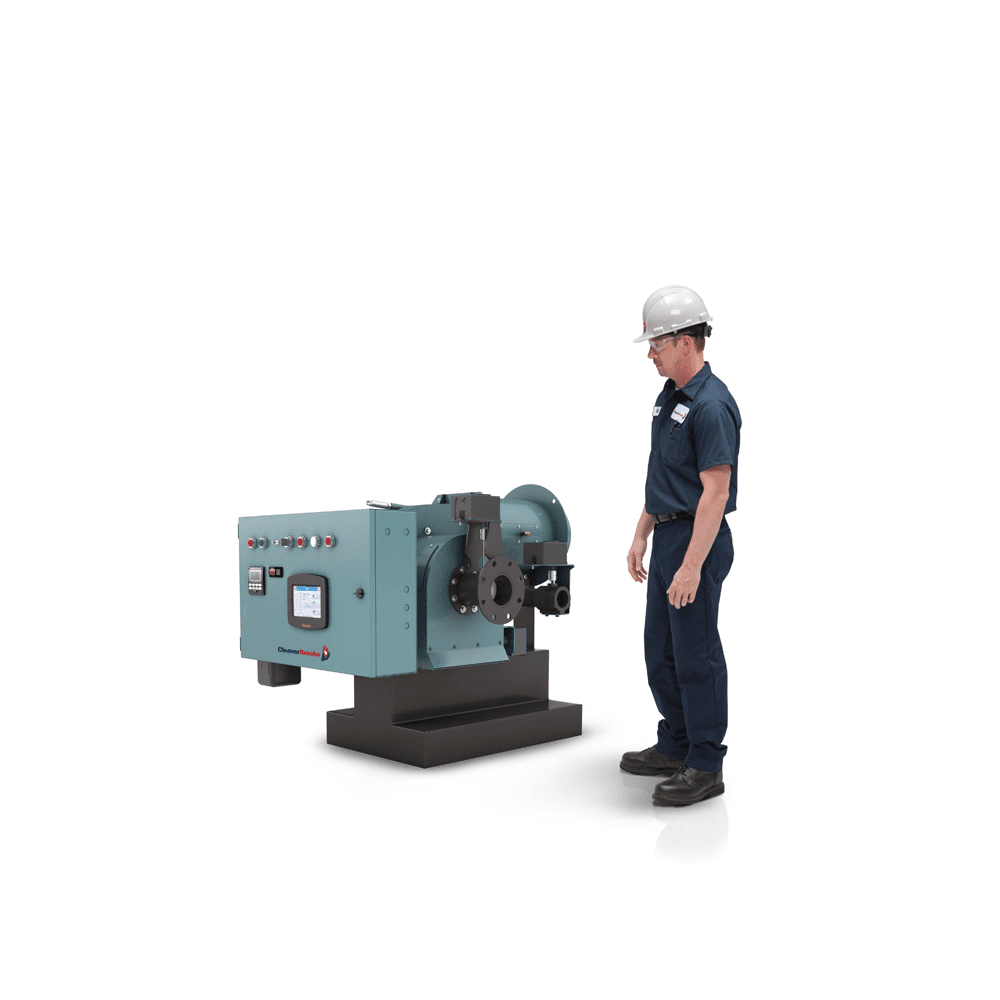

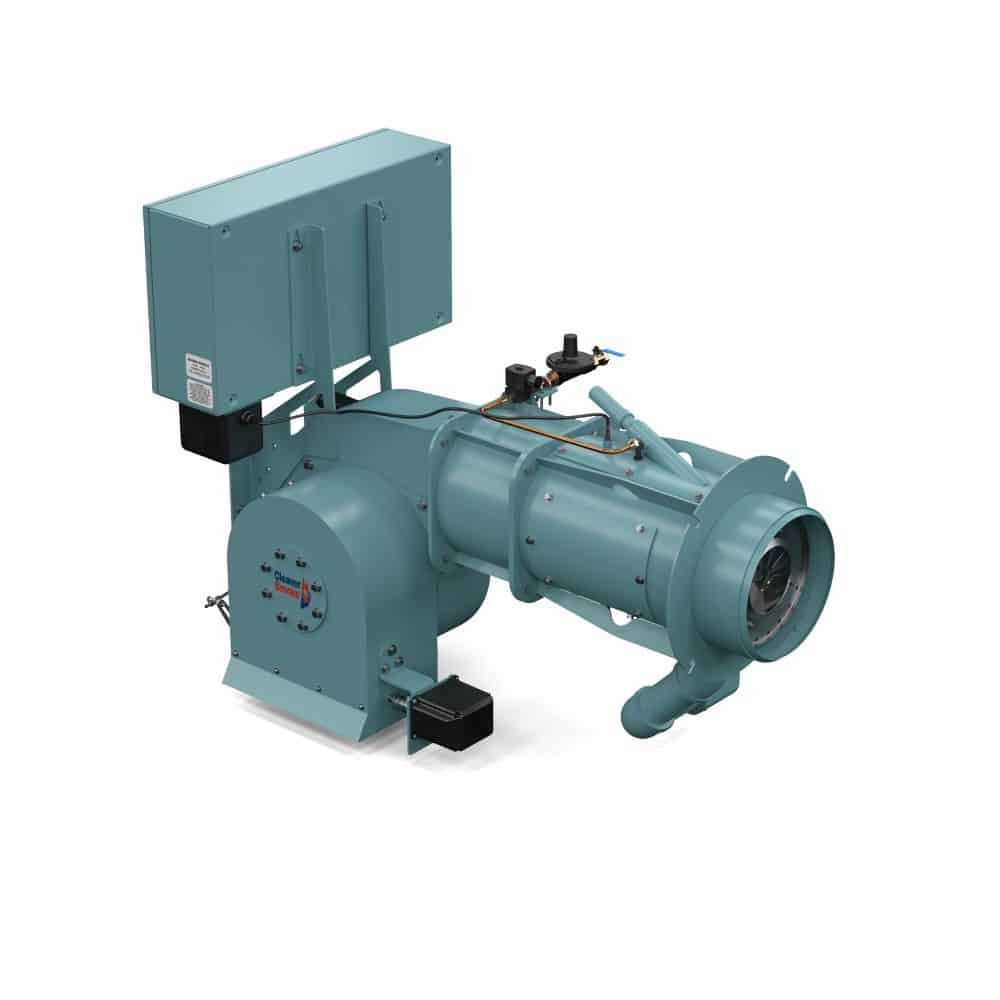

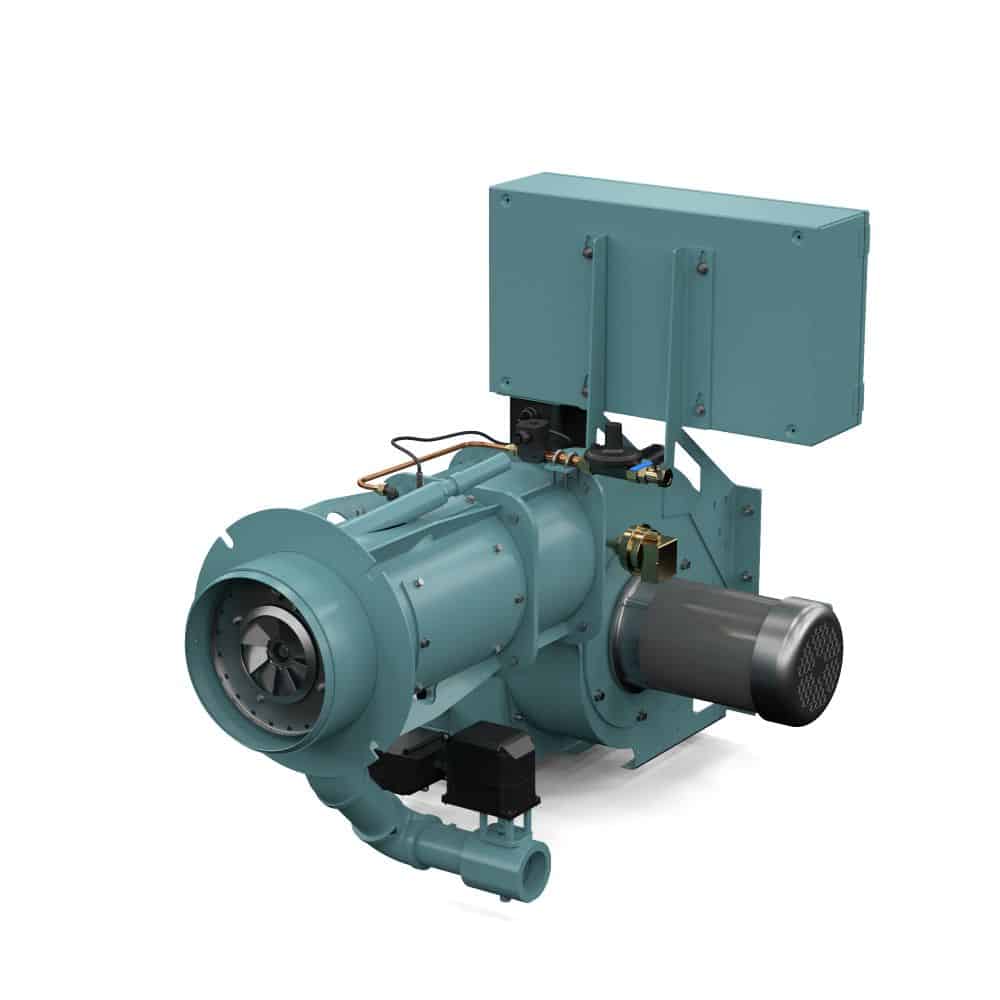

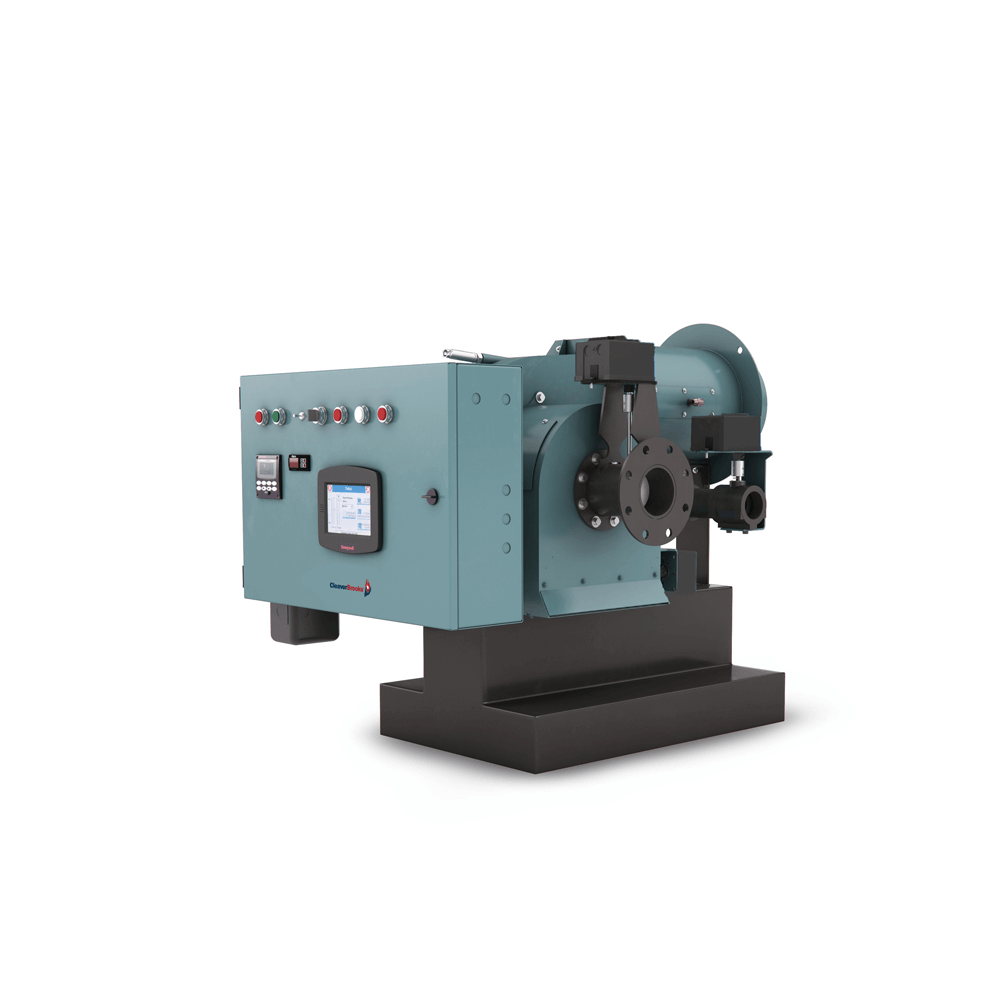

V Series

Description

CB Part #: CB-8168

• 1.3 to 16.8 MMBTU/hr
• 31 to 400 HP
• Gas, oil, and combination
• Available to <30 ppm NOxThe ProFire® V series burners boast an aerodynamic air-damper design which permits accurate air-to-fuel settings for maximum combustion efficiency

Product Overview:

• Unique air-damper design features a dual-blade configuration offering precise control of combustion air flow throughout the entire firing range
• Cam trim option with 14-point adjustment range for consistent air/fuel ratios
• UL/cUL listedSuitable for firetube, watertube, firebox and cast iron boilers, the standard V series offers natural gas, propane gas, pressure atomized #2 oil and combination gas/oil fuel options from 1.3 to 16.8 MMBTU. The low NOx V series offers natural gas, propane gas, pressure atomized #2 oil, and combination gas/oil fuel options from 1.3 to 14.7 MMBTU. Using advanced technology, the V series offers high turndown on natural gas and low emission capability. The forced-draft design provides clean and efficient combustion. Design features also include a top- or rear-mount panel option, Induced FGR (Flue Gas Recirculation), an FGR modulating valve, and No. 2 oil capability for backup fuel.

Applications:

• Process Steam
• Industrial Process
• Building Heat
• Hospital and Healthcare
• Laundry and Dry Cleaning
