D-Type

Description

CB Part #: CB-8500A

• Steam, temperatures to 1,050°F
• 10,000 to 500,000 lb/hr
• Natural Gas, #2 and #6 oil, refinery fuels, alternative fuels, combination
• Design pressure up to 1,800 psig
• Available to less than 5ppm NOx, Ultra-Low CO

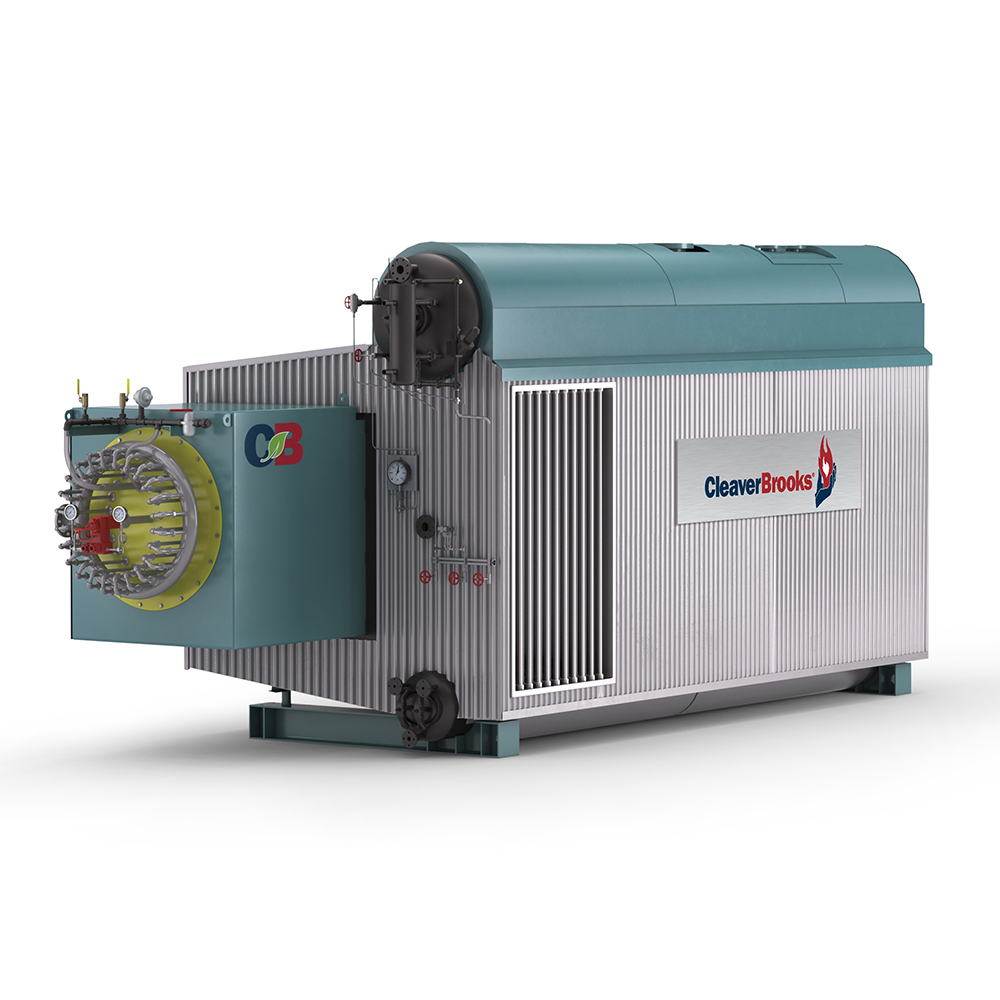

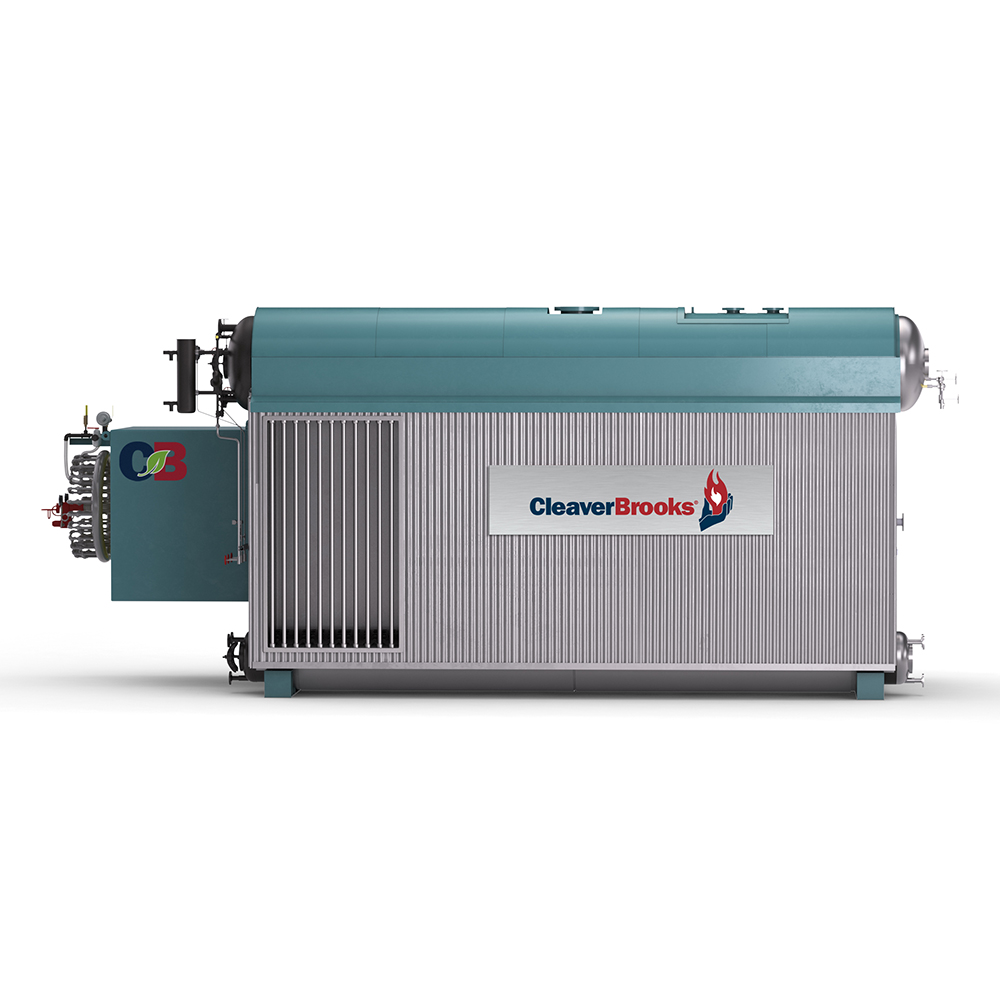

The Cleaver-Brooks Nebraska D-type industrial watertube boiler provides up to 1,050°F superheated steam in the lower-maintenance D configuration.
IWT boilers can fire renewable natural gas, biogas and hydrogen. They achieve <2 ppm NOx with an ultra-low NOx burner and SCR equipment, and options are available to increase boiler efficiency by 5% on average.

Product Overview:

• Furnace construction utilizes a welded-membrane wall design.
• Convective and interstage superheaters.
• Large, water-cooled, gas-tight furnace areas.
• Boiler wall constructions are 100% water-cooled and refractory-free.
• Only single-source supplier for integrated boiler, burner, and control solutions.
• Radiant superheater designs are available.
• Can accommodate selective catalytic reduction (SCR) and CO catalyst.

The D-type is a 100% membrane water-cooled furnace, reducing costly, time-consuming, annual maintenance. The front and rear walls are welded and refractory-free, as well as the burner throat, when integrated with our Natcom® burner. D-type boilers can be customized to provide superheated steam. We offer both single- and dual-stage integral superheater systems with optional temperature control over turndown.

Applications:

• Process Steam
• Industrial Process
• Building Heat
• Hospital and Healthcare
• Power and Utilities
• Refineries and Petrochemical
• Pharmaceutical
• Pulp and Paper
• Schools
• Food & Beverage
