Slant Type/VC Series

Description

CB Part #: CB-8586B

• Gas Flows to 400,000 lbs/hr
• Steam generation from 10,000 to 150,000 lb/hr
• Design pressure up to 2,300 psig
• Steam temperature to 1,050 °F
• Supplemental firing with stack emissions available to less than 2 ppm NOx with SCR

The Slant and VC Series boilers are ideal for applications where the gas side inlet temperature is less than 1,700°F. With a single-pass design, this series allows the boiler system to be optimized to fit in a variety of space limitations. Similar to the Maxfire®, This series is also suitable for applications where SCR or CO catalyst must be incorporated to meet today’s stringent environmental permitting requirements.

The Cleaver-Brooks HRSG achieves >80% efficiency compared to 56% for traditional technologies. It reduces up to 7.0 MMBtu/hr of fuel in conventional boilers and eliminates 2,870 tons of CO2 emissions annually per 1 MWe GT output.

Product Overview:

• Cold casing design with floating inner liners.
• Multiple gas flow options conform to space restrictions and minimize installation cost.
• Unheated downcomers, completely external to the boiler casing.
• Single-pass design for lower gas-side pressure drop.
• Ease of access to tubes for inspection and maintenance.
• Accommodation for selective catalytic reduction (SCR) and CO catalyst.

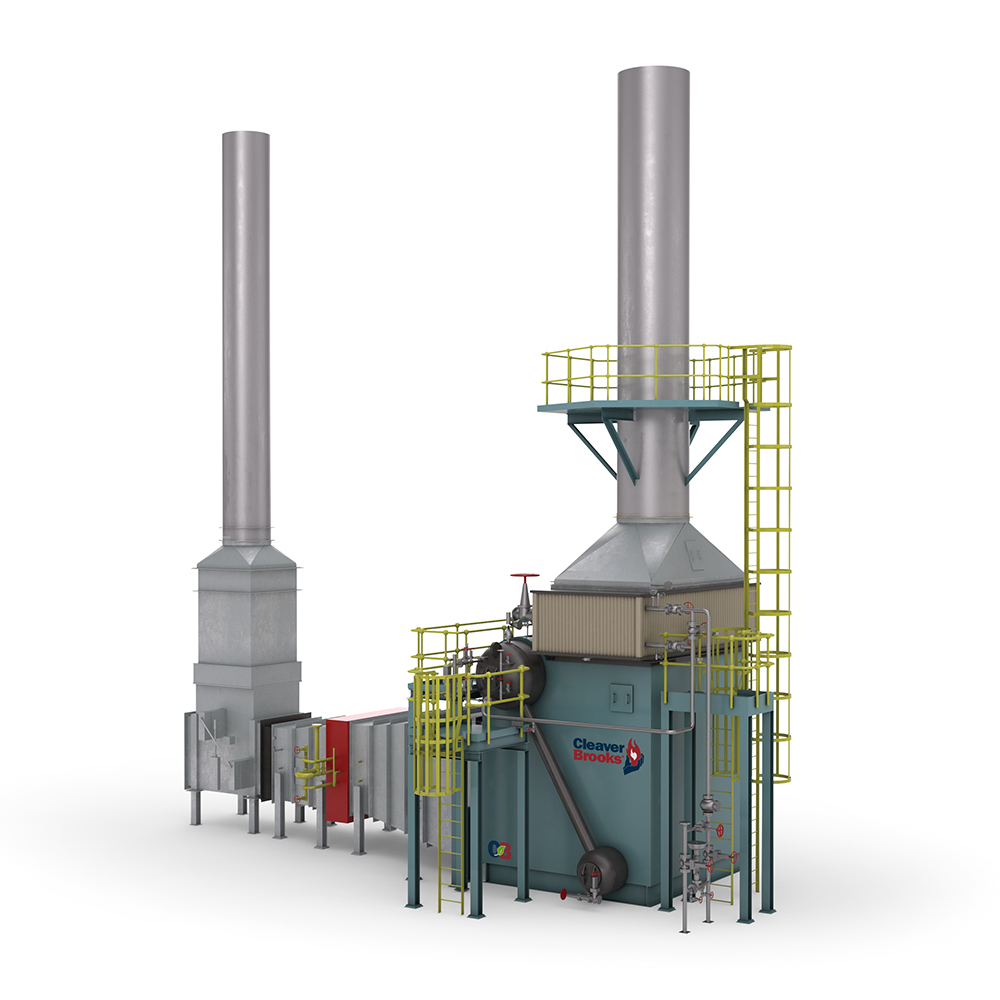

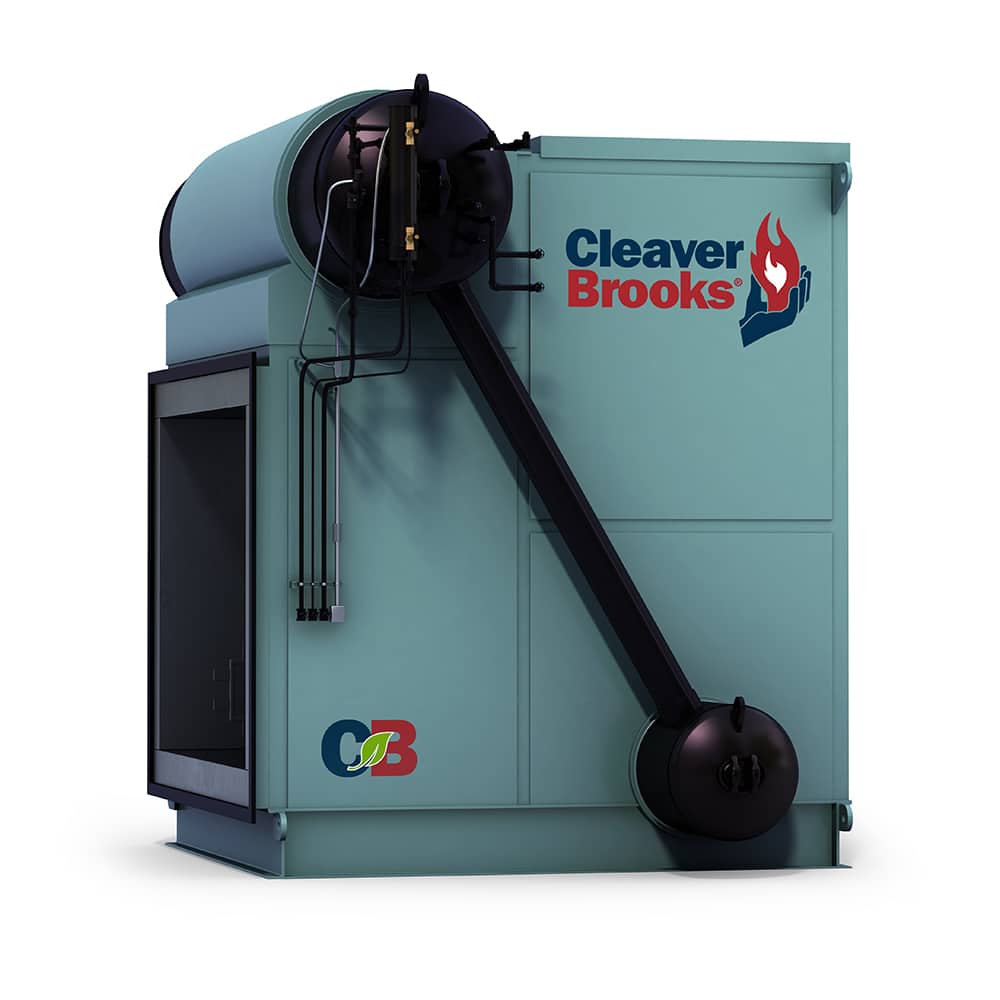

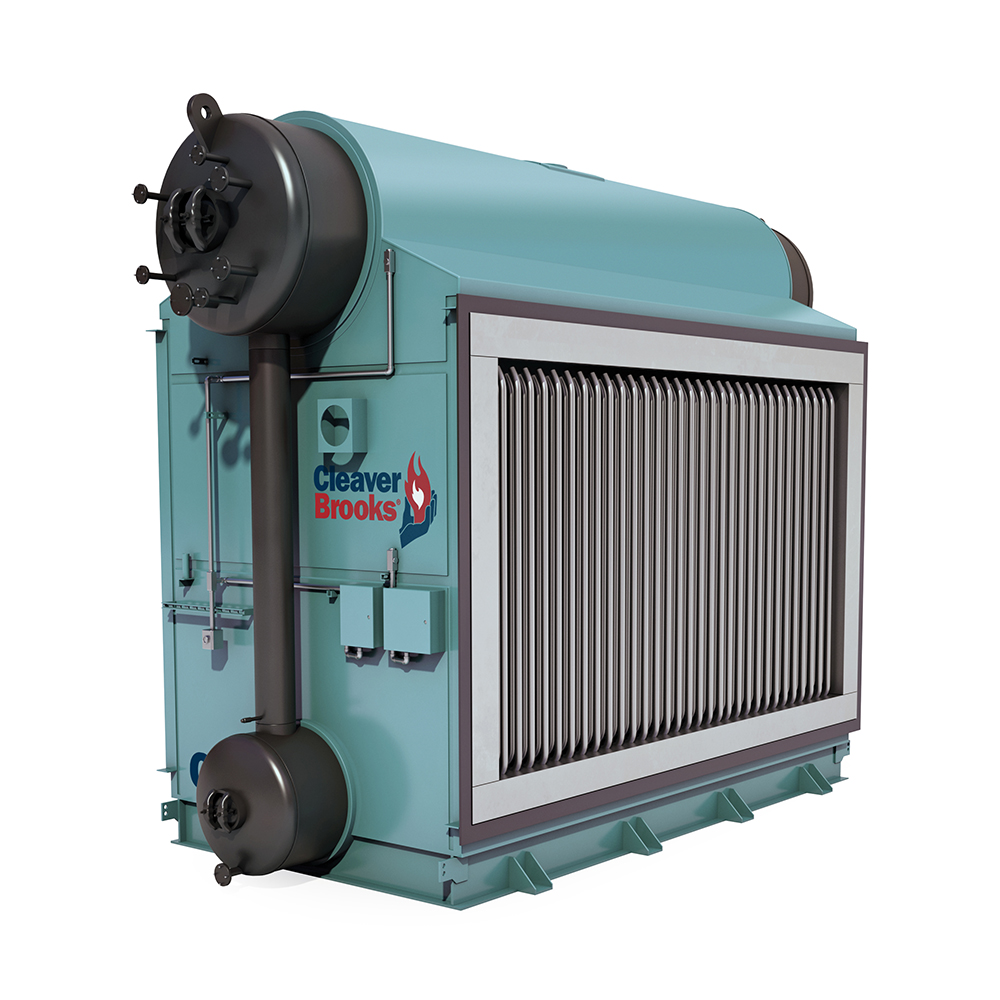

The Slant model offers an integral steam and water (mud) drum positioned diagonally which maximizes the amount of heating surface for a given shipping profile creating a compact design for efficient heat recovery. The VC model is a drum-over-drum design well suited for higher steam pressure applications, integrated CO/SCR (selective catalytic reduction) systems, and horizontal exhaust flow arrangements.

Applications:

• Combined Heat and Power
• Process Steam
• District Heating
• Universities and Institutions
• Steam Heating
• Hospital and Healthcare
• Chemical
• Power and Utilities
• Refineries and Petrochemical
• Wastewater Treatment
