Model HSB

Description

CB Part #: CB-8264C

• Electric horizontal steam boiler
• 1560 to 3375 kW, up to 11,813 lb/hr
• Electrical power
• 15, 150, 200 & 250 psig
• No site emissions

Cleaver-Brooks electric boilers use electricity as an energy source for zero carbon footprint and zero site emissions, ideal for meeting emissions reduction or decarbonization goals. Electric boilers are also nearly 100% efficient, meaning all energy delivered to them is converted to steam or hot water.

Product Overview:

• Compact design and smaller footprint
• No site emissions
• Quiet operation with virtually no noise emissions
• Nearly 100% efficiency at all operating points
• Ease of maintenance with reduced complexity/number of moving parts

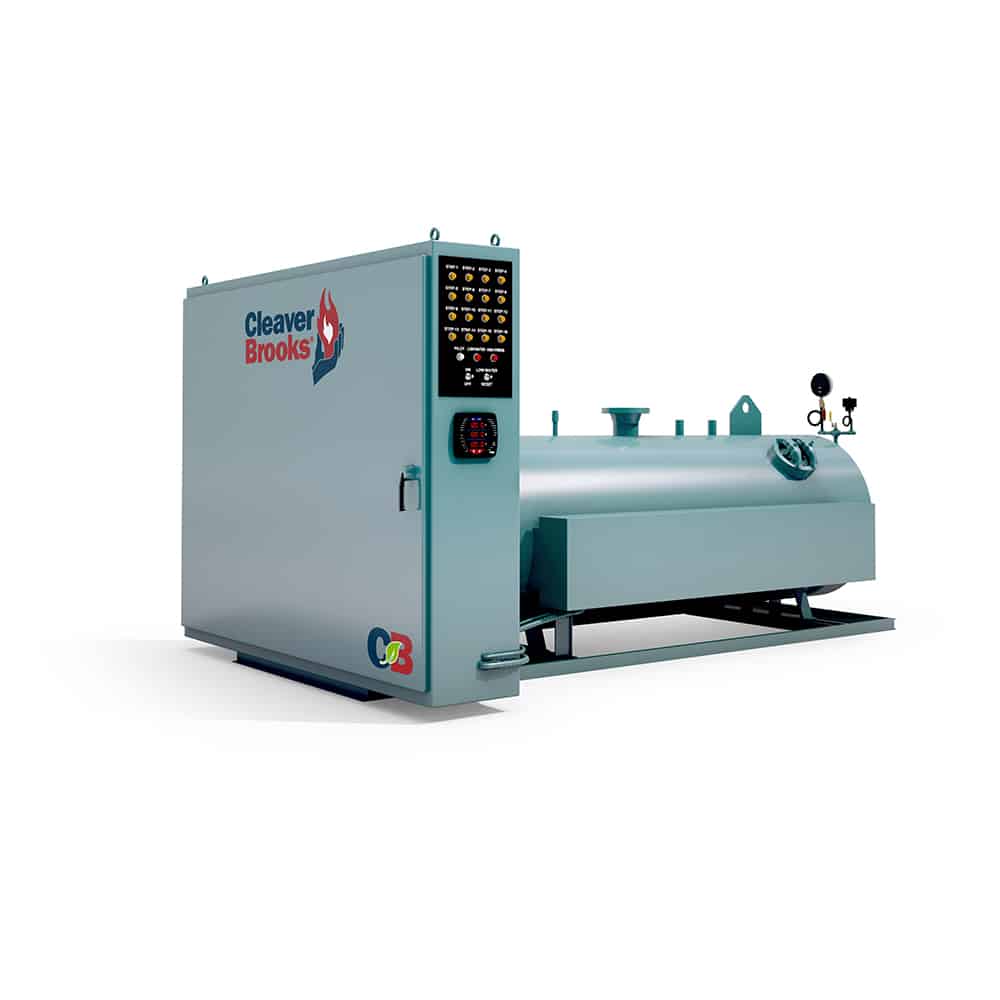

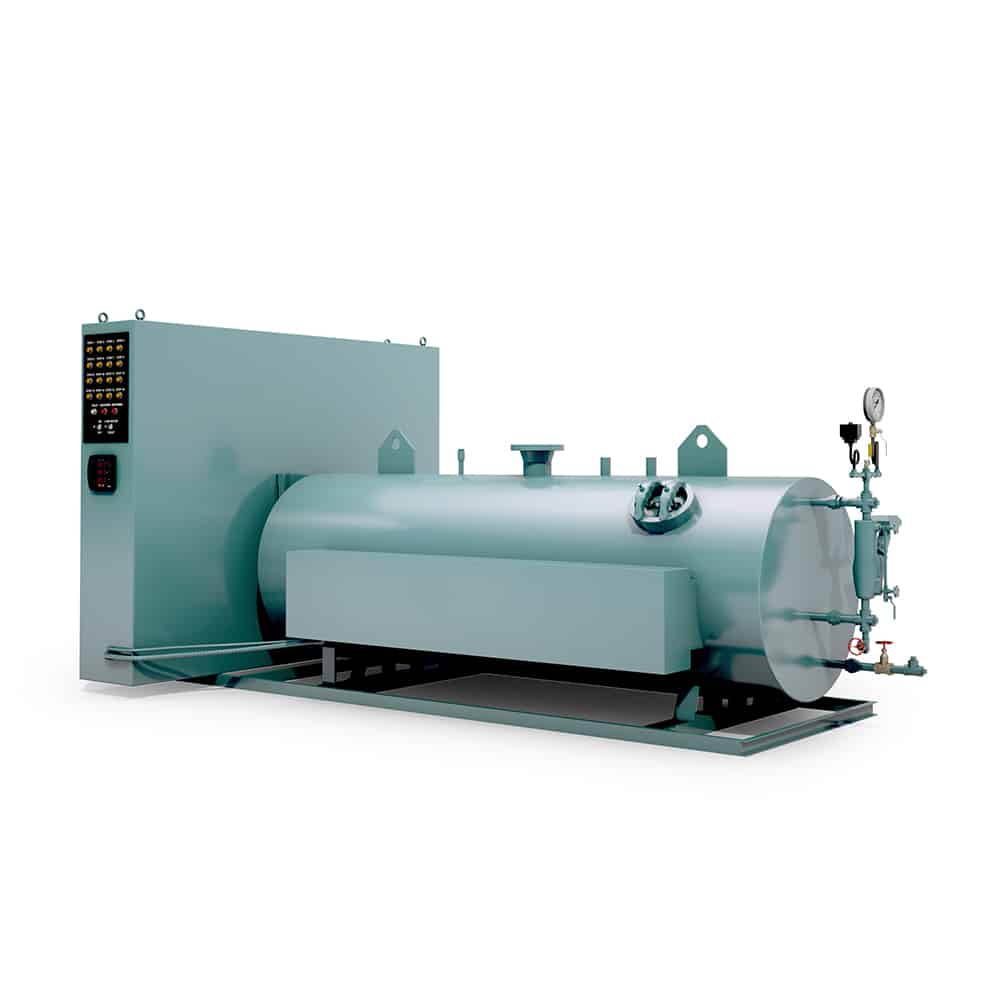

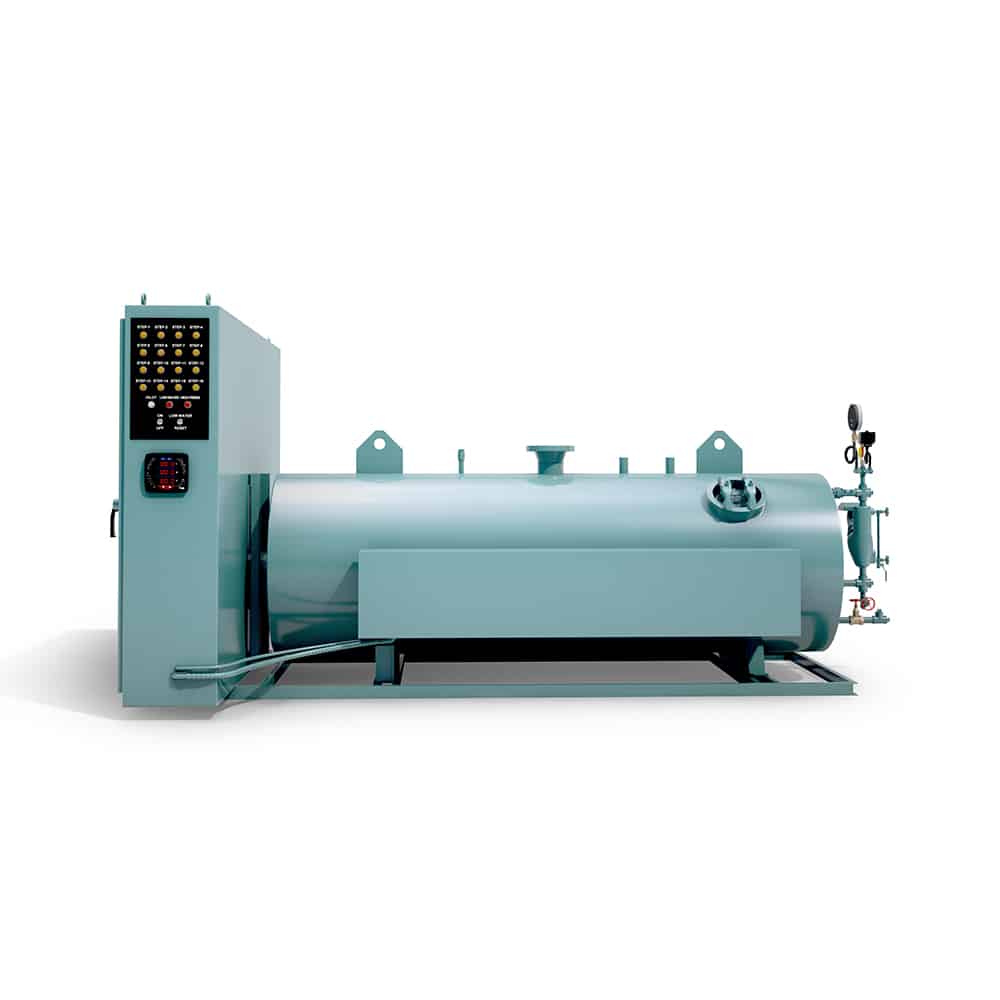

• All units are fully packaged and ready for installationThe Cleaver-Brooks Model HSB is an immersion-element steam boiler with a horizontal, insulated vessel. This boiler is designed for the heavy-duty, continuous demand of commercial and industrial applications. Available in a vessel size of 42″ diameter with an output spanning 1,560 kW to 3,375 kW. A typical Model HSB boiler system includes operating controls, elements, fuses, contactors, safety valve, and instrumentation.

Applications:

• Process Steam
• Building Heat
• Power and Utilities
• Refineries and Petrochemical
• Laundry and Dry Cleaning
• Decarbonization
