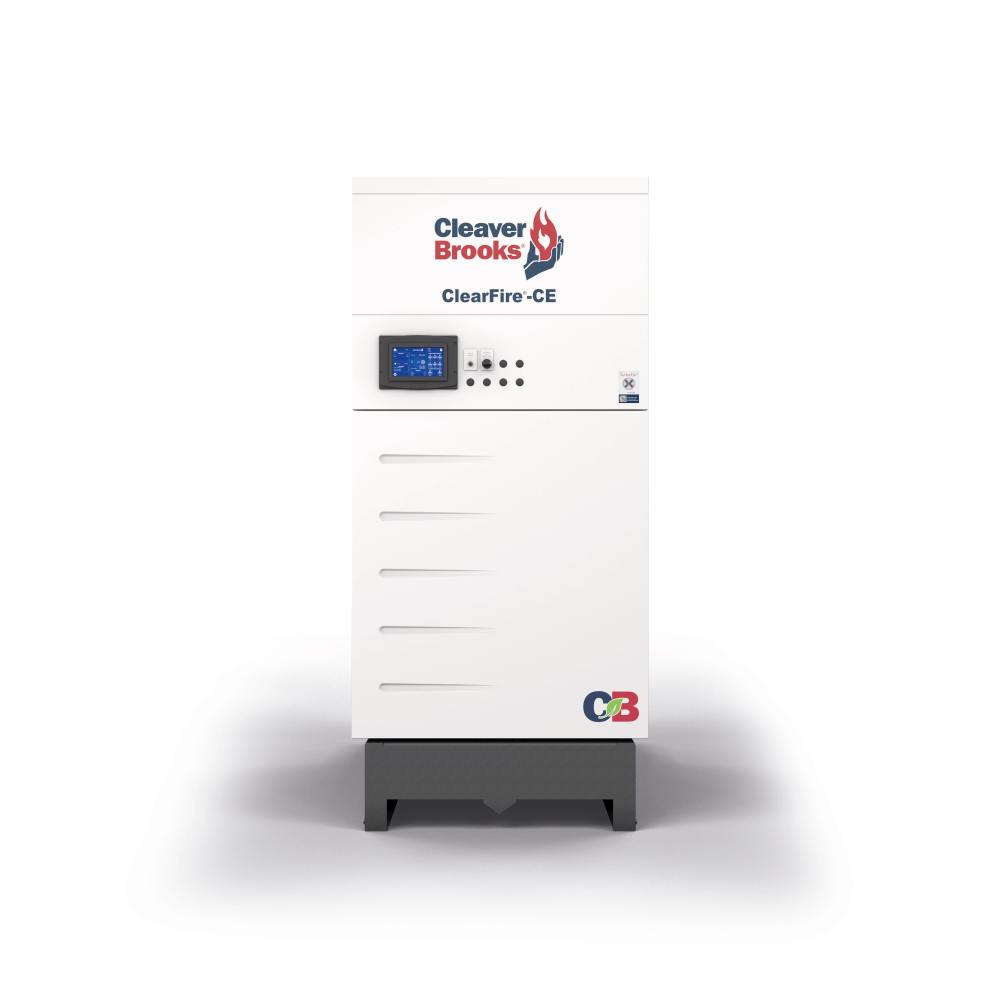

ClearFire®-CE Hydronic Boiler

Description

CB Part #: CB-8554

• Fully condensing high-mass firetube boiler
• Compact footprint
• 500 to 6,000 MBH
• Standard less than 20 ppm NOx
• Ideal for variable flow primary systems

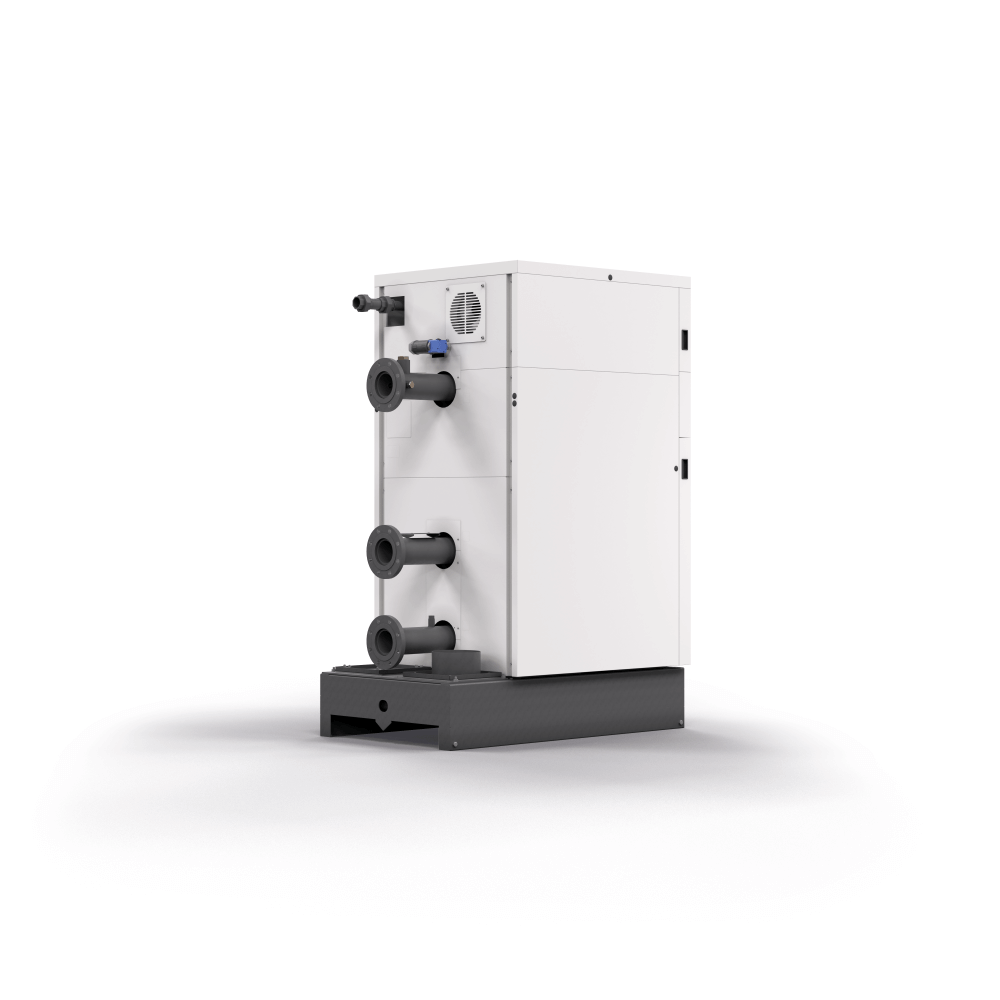

• Standard dual-return connections
• Robust, no flow tolerant designThe ClearFire®-CE (CFC-E) is a compact, high-mass, fully condensing hydronic boiler, capable of variable-flow pumping, allowing for maximum operating efficiency in a variety of system applications.The CFC-E is up to 99% efficient due to its high-mass firetube construction with AluFer® firetube technology. The burner design offers inherent low emissions with <20 ppm NOx standard, helping meet emissions reduction goals.

Product Overview:

• High-mass design in a compact footprint, ideal for retrofit applications
• Duplex stainless steel construction
• Dual-temperature returns for additional energy savings potential
• Falcon boiler control with lead-lag capability up to 8 boilers
• Quiet operation, <70 dBA sound level at 3 feet
• Low waterside pressure drop for reduced pumping energy requirements

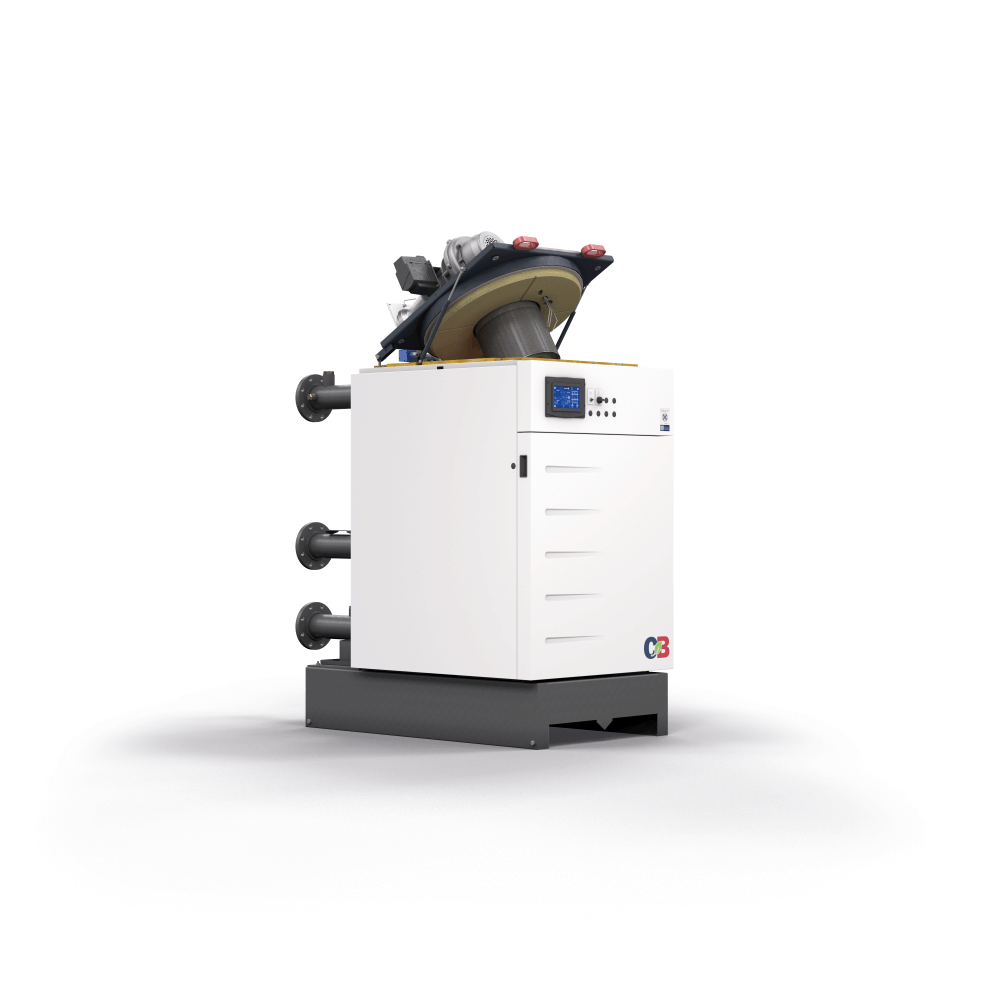

• Hinged burner for easy access
• Thermal shock resistant

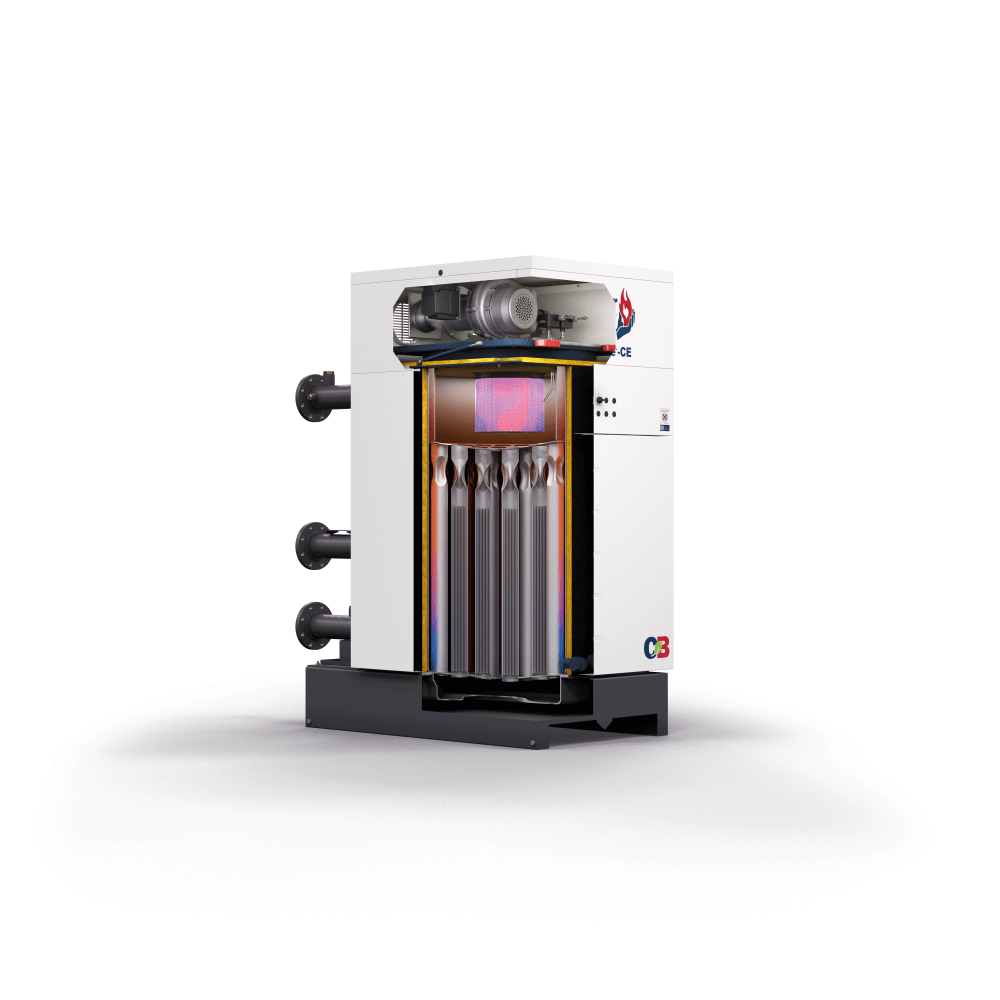

• cULus listedThe ClearFire®-CE (CFC-E) is a fully assembled, high-mass firetube condensing boiler with a large-water-volume pressure vessel. The high-mass design equates to a low pressure drop, reducing pumping energy with no minimum flow requirements. The pressure vessel is also thermal shock proof, capable of high-delta-T system designs to maximize condensing and reduce flow rates. The highly effective fireside heating surface with industry leading AluFer® tubes leads to superior efficiencies in all operating conditions. The modulating, premix burner control automatically adjusts the air/gas mixture for maximum burner efficiency. The linkageless burner provides fully modulating turndown without the use of complex air/fuel mixing valves. The dual-return connections have the ability to increase condensing in the boiler and raise efficiencies by 6%+ more than a single-return boiler. The ClearFire-CE provides the reliability and longevity that customers expect from Cleaver-Brooks. The CFC-E is designed to leverage the advantages of primary-variable-flow pumping systems with a small overall footprint, offering system flexibility and true operational efficiency without compromise.

Applications:

• Process Steam
• Industrial Process
• Building Heat
• Sterilization
• Humidification
• Hospital and Healthcare
• Office Buildings
