A-Type

Description

CB Part #: CB-8500B

• Steam, temperatures to 1,050°F
• 10,000 to 500,000 lb/hr
• Natural Gas, #2 and #6 oil, refinery fuels, alternative fuels, combination
• Design pressure up to 1,800 psig
• Available to less than 5 ppm NOx, Ultra-Low CO

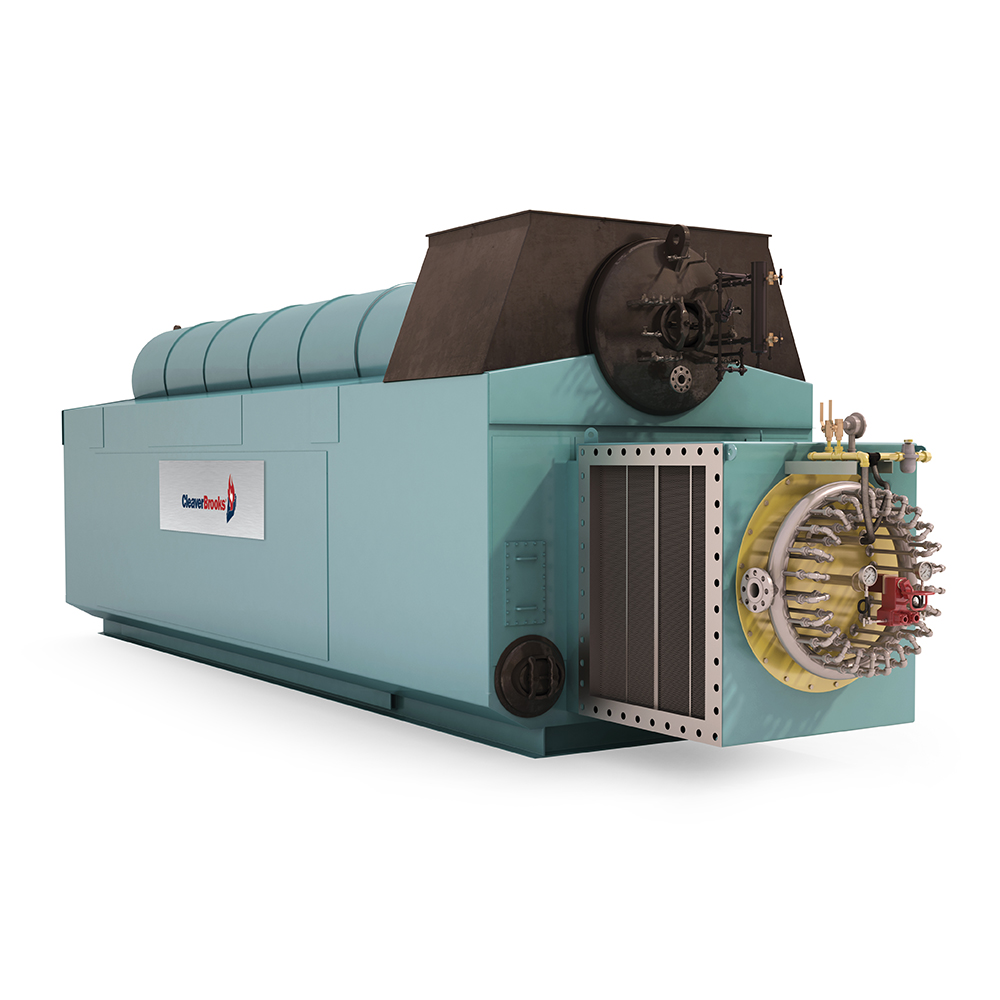

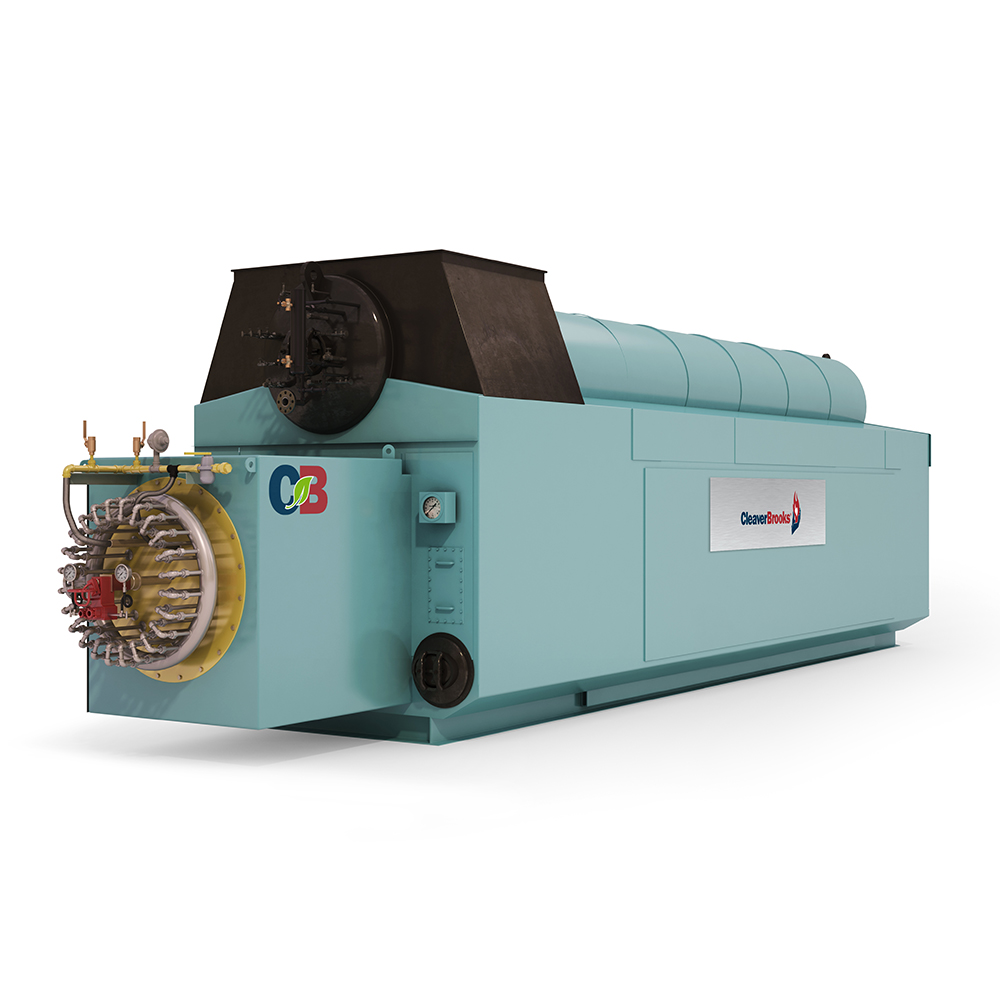

The Cleaver-Brooks Nebraska A-type industrial watertube boiler provides up to 1,050°F superheated steam in the reliable A configuration.
IWT boilers can fire renewable natural gas, biogas and hydrogen. They achieve <2 ppm NOx with an ultra-low NOx burner and SCR equipment, and options are available to increase boiler efficiency by 5% on average.

Product Overview:

• Can accommodate selective catalytic reduction (SCR) and CO catalyst
• Furnace construction utilizes a welded-membrane wall design.
• Convection or radiant superheaters.
• Large, water-cooled, gas-tight furnace areas.
• Boiler wall constructions are 100% water-cooled and refractory-free.
• Only single-source supplier for integrated boiler, burner, and control solutions.
• Can accommodate selective catalytic reduction (SCR) and CO catalyst.
• The A-type design features a large, water-cooled furnace and an evaporator section with a low gas-side pressure drop that reduces fan power consumption. The vertical gas outlet
• minimizes the width of the overall package and allows for large steam capacities in restrictive footprints.

Applications:

• Process Steam
• Industrial Process
• Building Heat
• Hospital and Healthcare
• Power and Utilities
• Refineries and Petrochemical
• Pharmaceutical
• Pulp and Paper
• Schools
• Food & Beverage
